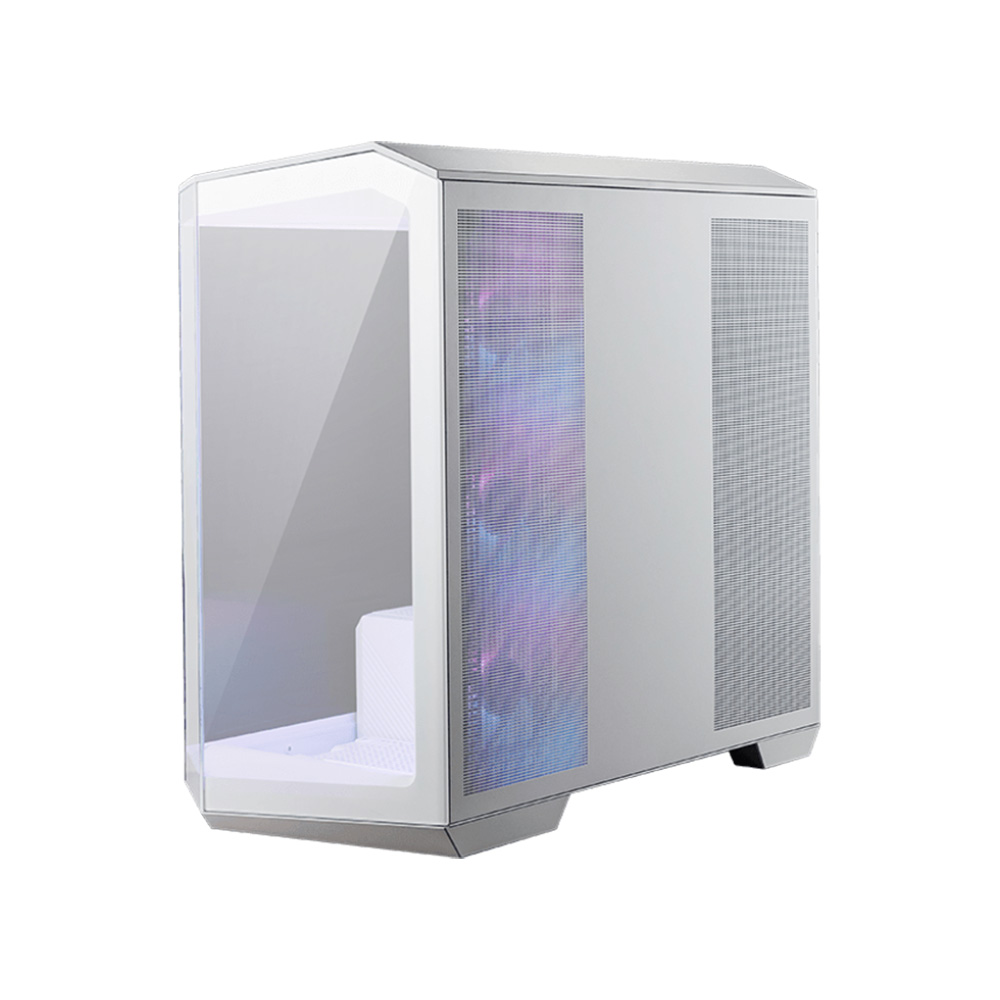

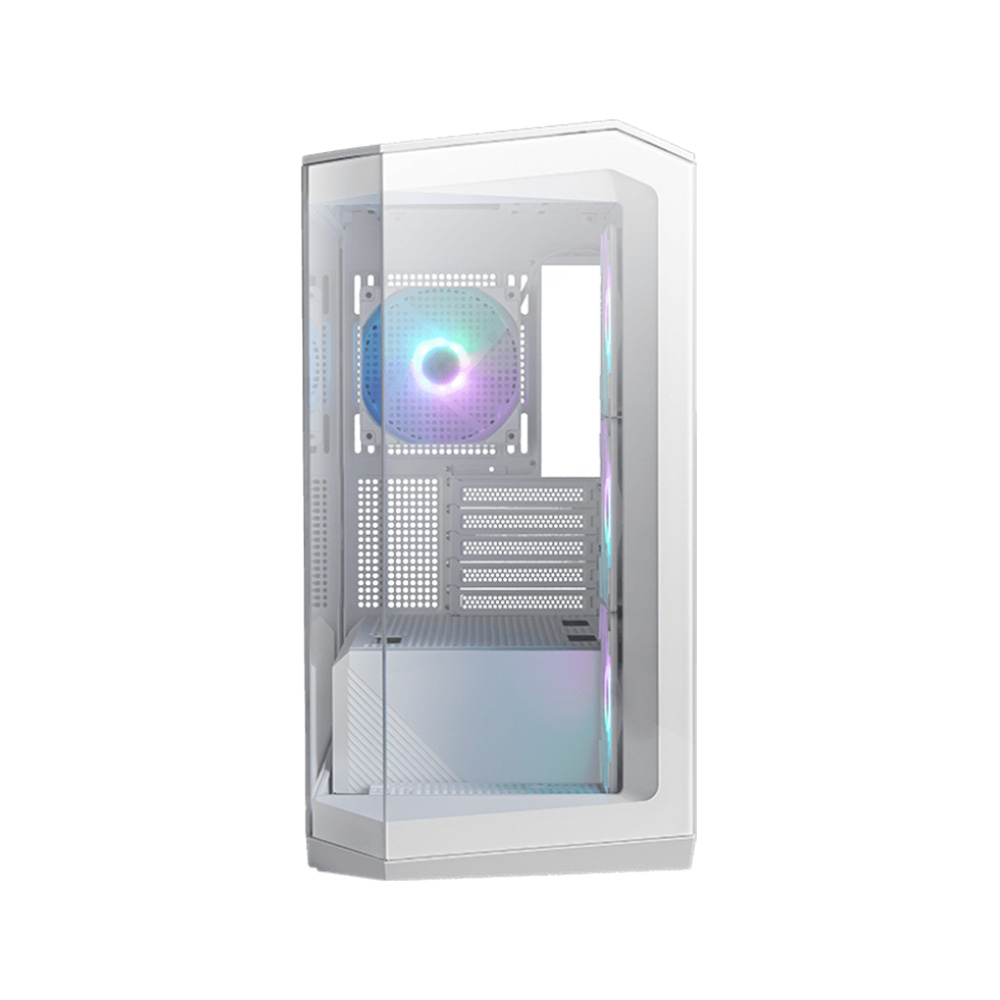

PRODUCT NAME | MAG PANO M100R PZ / WHITE |
CASE FORM FACTOR | Micro- ATX Tower |
MOTHERBOARD FORM FACTOR SUPPORT | M-ATX (Back-connect supported) / ITX |
I/O PORTS | 1 x USB 3.2 Gen 1 Type-A 1 x USB 3.2 Gen 2x2 Type-C 1 x Audio-Out / Mic-in 1 x LED Switch Button 1 x Power Button |
DRIVE MOUNT SUPPORT | 1 x 2.5” 1 x 2.5”/3.5” combo (up to 2 x 2.5” or 1 x 2.5”+ 1 x 3.5”) |
EXPANSION SLOTS | 5 |
MAXIMUM GPU LENGTH | 390 mm / 15.35 inches *Support horizontal installation only. |
MAXIMUM CPU COOLER HEIGHT | 175 mm / 6.9 inches |
POWER SUPPLY SUPPORT | ATX |
MAXIMUM PSU LENGTH | 200 mm / 7.87 inches |
FAN SIZE SUPPORT | Top: 3 x 120 mm / 2 x 140 mm Front: NA Rear: 1 x 120 mm / 1 x 140 mm Side: 3 x 120 mm Bottom: 1 x 120 mm PSU Shroud: 2 x 120 mm |
PRE-INSTALLED FAN SIZE | Side: 3 x 120 mm Rear: 1 x 120 mm |
PRE-INSTALLED FAN TYPE | Side: 3 x ARGB Fan (Reverse-blade) Rear: 1 x ARGB Fan |
DIMENSIONS (DXWXH) | 440 x 235 x 405 mm / 17.32 x 9.25 x 15.94 inches |
NET WEIGHT | TBD |
GROSS WEIGHT | TBD |
RADIATOR SIZE SUPPORT | Top: 120 / 240 / 360 mm Front: NA Rear: 120 / 140 mm Side: NA Bottom: NA |
