產品介紹
1. Switch O.S:
a. Windows: Pn + Q
b. Mac: Pn + W
- Windows interchangeable with Alt
- F1~F12 please refer to the mac keyboard layout
- F3 and F4 need to set their own
c. Linux: Pn + E
- Caps lock interchangeable with L_Ctrl
2. Switch Keyboard Layout:
- Pn + R+Shift switch(Cycle) - QWERTY/DVORAK/COLEMAK
3. Spacebar LEDs instructions:
a. Left side LED – Switching Layers (Pn + N, M, <, >)
- None - Default
- Red - Layer 1
- Green - Layer 2
- Blue - Layer 3
b. Right side LED – Switching layout and Windows lock
- Red - COLEMAK
- Green - DVORAK
- Blue – Windows lock None – QWERTY (Default)
4. Other functions:
- a. Reset the current layer key-codes: Pn + R
- b. Reset all layers’ key-codes and restore to default: L_Alt + R_Alt
- c. Swap Fn or Pn position:
- Hit Fn + L_Shift for 3 seconds then select new Fn key directly
- Hit Pn + L_Shift for 3 seconds then select new Pn key directly
Bluetooth Pairing Guide
The following procedure details how to pair with your device.
- To put your keyboard in pair mode, slide the power switch on (Back of case)
- Activate Bluetooth on your device and set it to search for new devices.
- Press Pn + L_Alt to enter the Bluetooth pairing mode, then hit Pn + one of J, K, L, ; to pair
- Locate the list of Bluetooth devices in the interface of the device. After selecting "Vortexgear" from it, the Bluetooth indicator is off and the pairing is completed.
- To pair second device or to re-pair to the original device: Same as Step 2 and 3
Remark:
- Please use AAA battery x 2..
- The Bluetooth indicator will flash Green quickly when switching groups
- Low voltage shows a Red light
- The USB mode is automatically switched when the USB is powered on.
產品特點
- USB-C和無線藍牙3.0 連接 (使用2pc AAA電池)
- 支持4個設備連接到藍牙設備
- 支援3 O.S - Windows / Mac / Linux
- PBT DSA鍵帽及熱昇華工藝印字(正面及側面)
- 彩色修飾鍵帽
- 支持藍牙模式下的硬件Macro編程
- 3層自定義鍵值Macro
- ABS外殼
產品規格

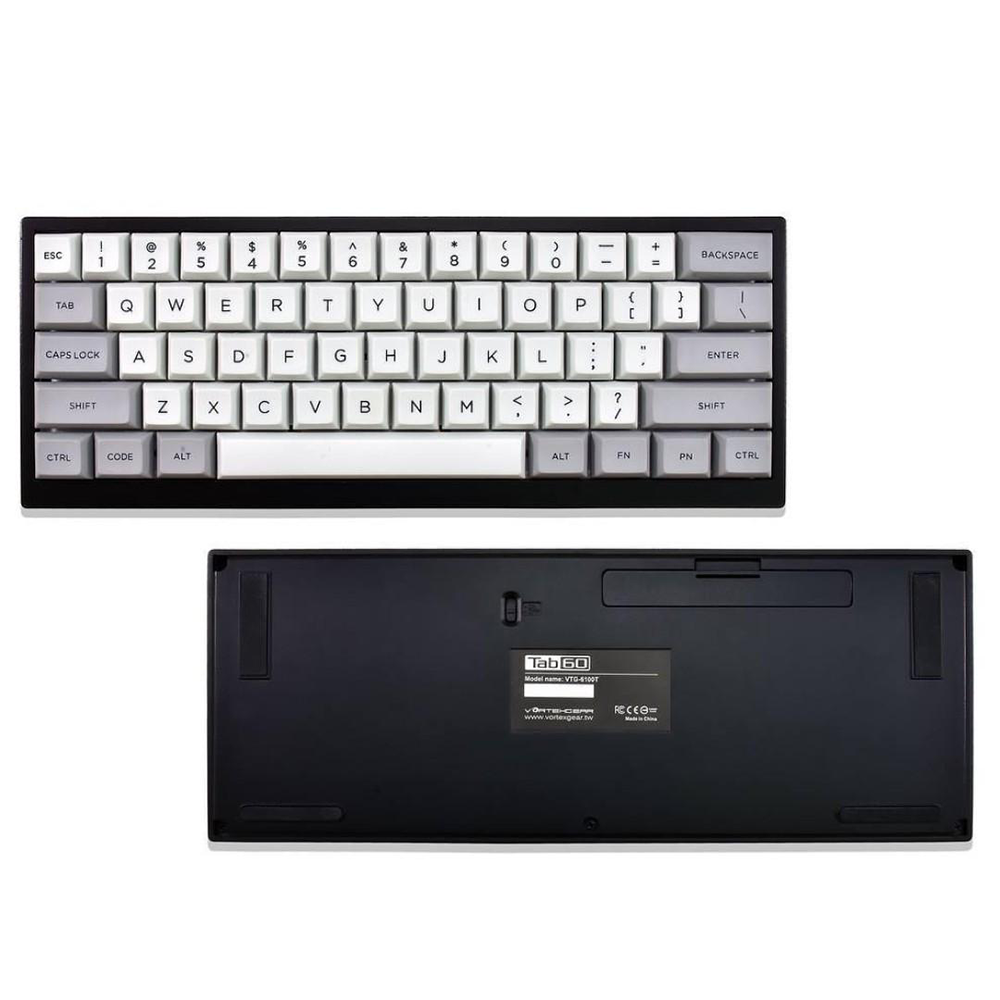

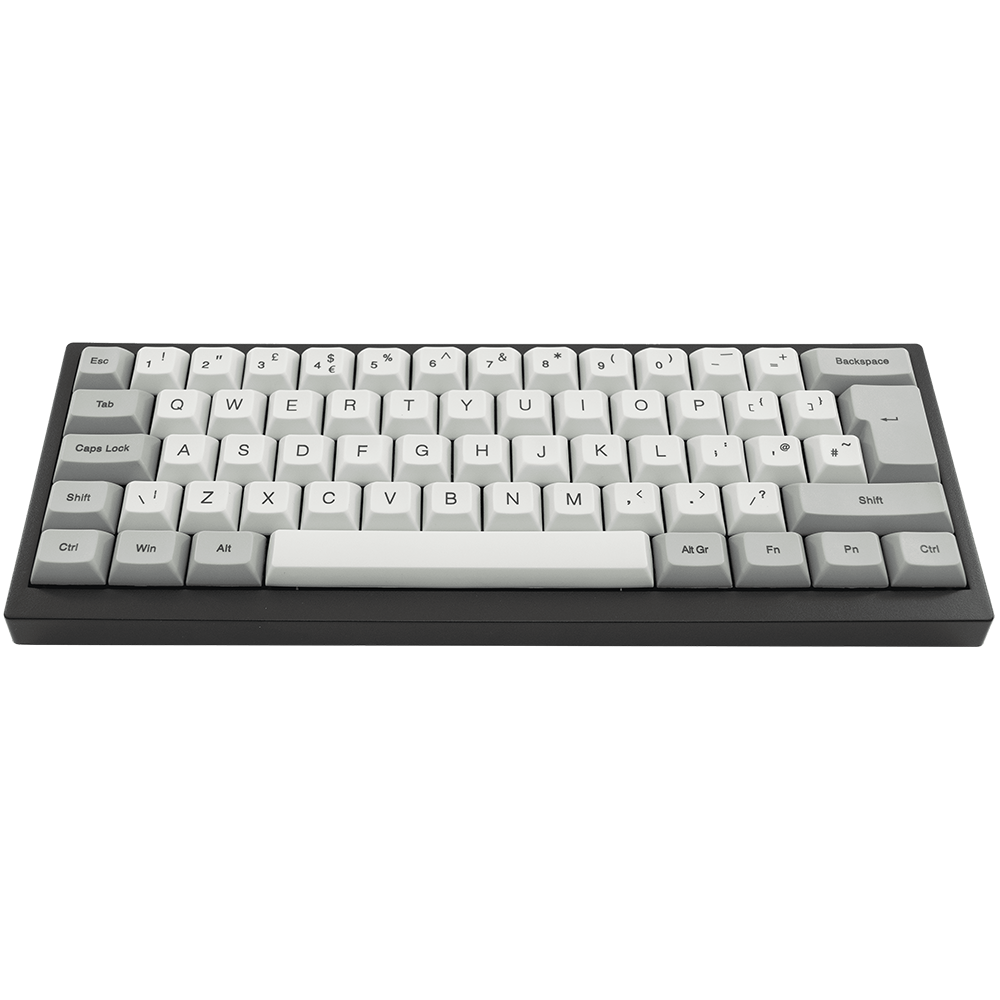

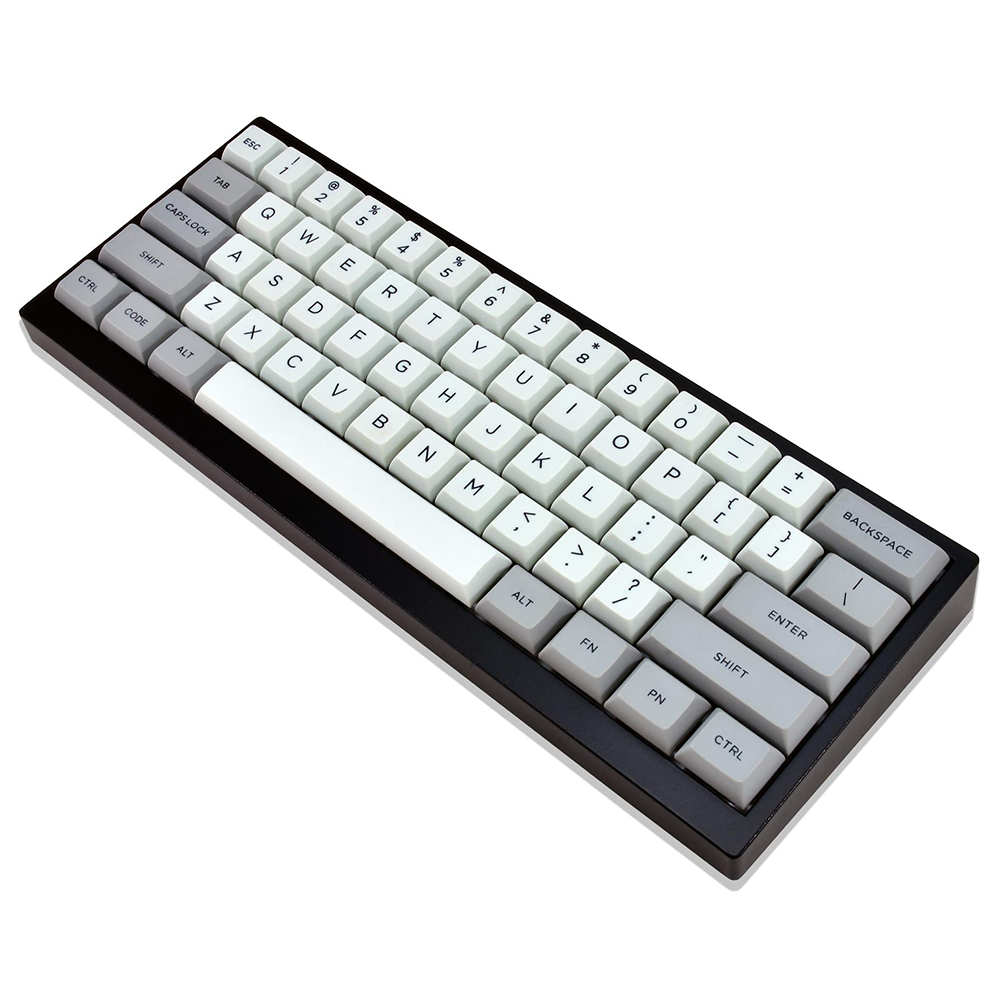

- 型號:TAB60
- 連接介面:USB-C和無線藍牙3.0 連接 (使用2pc AAA電池)
- 按鍵數:61鍵
- 機械軸:Cherry MX
包裝內容
- Keyboard x 1
- Micro USB Cable x 1
- Extra Mac & RGBY modifiers keycap
相關網站
Vortex 產品官網
一年保用
