CHIPSET | AMD X670 |
---|---|
CPU SUPPORT | Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5 |
MEMORY | 4x DDR5, Maximum Memory Capacity 128GB |
EXPANSION SLOT | 3x PCI-E x16 slot Supports x16/x0/x4, x8/x8/x4 PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 5.0 supports up to x8 (From CPU) PCI_E3 PCIe 5.0 supports up to x4 (From CPU) |
MULTI-GPU | Supports NVIDIA® SLI™ Technology Supports AMD MULTI-GPU |
STORAGE | 4x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 8x SATA 6G port |
RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices * SATA_A1_A2, SATA_B1_B2 and SATA_B3_B4 do not support RAID function. |
LAN | Marvell® AQC113-B1-C 10Gbps LAN Intel® I225V 2.5Gbps LAN |
WIRELESS / BLUETOOTH | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. ** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11. |
USB | 4x USB 2.0 ports (Front) 4x USB 3.2 Gen1 Type A ports (Front) 7x USB 3.2 Gen2 Type A ports (Rear) 1x USB 3.2 Gen2 Type C ports (Front) 2x USB 3.2 Gen2x2 Type C ports (Rear) 1x USB 3.2 Gen2x2 Type C ports (Front) |
AUDIO | Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
INTERNAL I/O | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 4pin or 6 pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB 3.2 Gen 2x2 Type C ports V-check point |
LED FEATURE | 1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED |

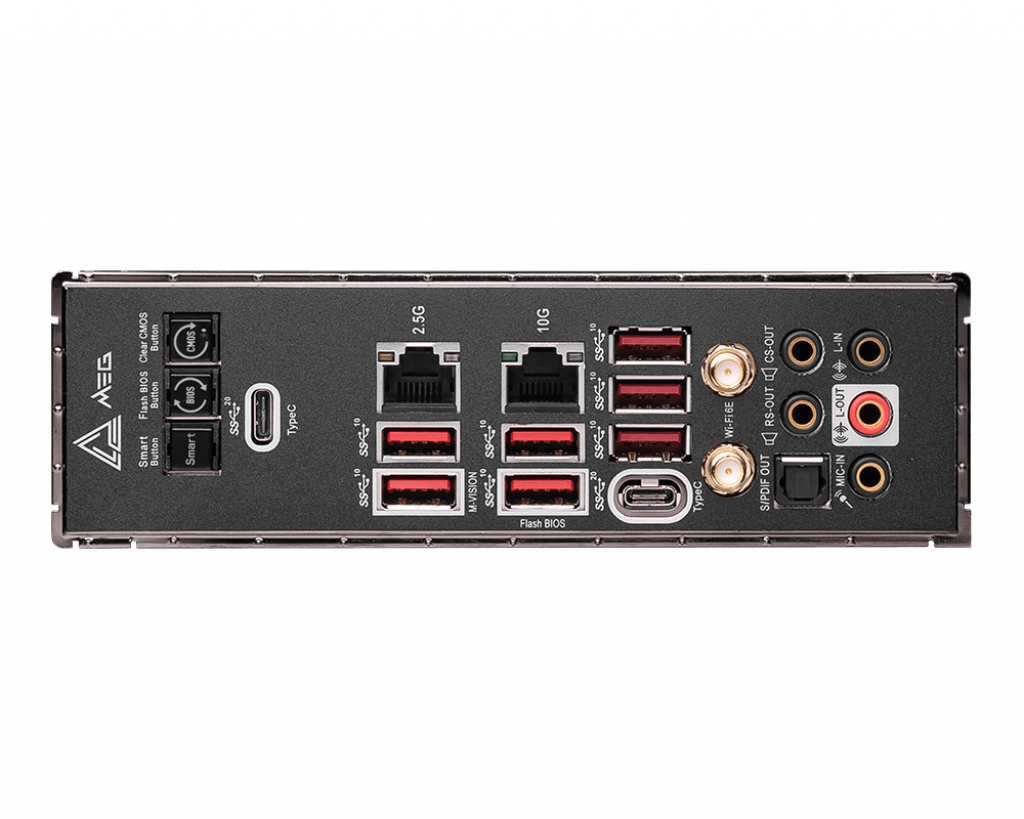

BACK PANEL PORTS |
|
OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
PCB DIMENSION | E-ATX 288mmx304.8mm |
