CHIPSET | AMD X670 |
---|---|
CPU SUPPORT | Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5 |
ONBOARD GRAPHICS | 1x HDMI™ Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz* 1x Display Port Support DP 1.4, maximum resolution of 4K 60Hz* 1x Type-C Display port Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
MEMORY | 4x DDR5, Maximum Memory Capacity 128GB |
EXPANSION SLOT | 3x PCI-E x16 slot Supports x16/x0/x4, x8/x8/x4 PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 5.0 supports up to x8 (From CPU) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
MULTI-GPU | Supports AMD MULTI-GPU |
STORAGE | 4x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port |
RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices |
LAN | Realtek® RTL8125BG 2.5Gbps LAN |
WIRELESS / BLUETOOTH | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. ** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11. |
USB | 2x USB 2.0 ports (Rear) 4x USB 2.0 ports (Front) 4x USB 3.2 Gen1 Type A ports (Front) 6x USB 3.2 Gen2 Type A ports (Rear) 1x USB 3.2 Gen2 Type C ports (Rear) 1x USB 3.2 Gen2 Type C ports (Front) 1x USB 3.2 Gen2x2 Type C ports (Rear) |
AUDIO | Realtek® ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
INTERNAL I/O | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
LED FEATURE | 1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED |

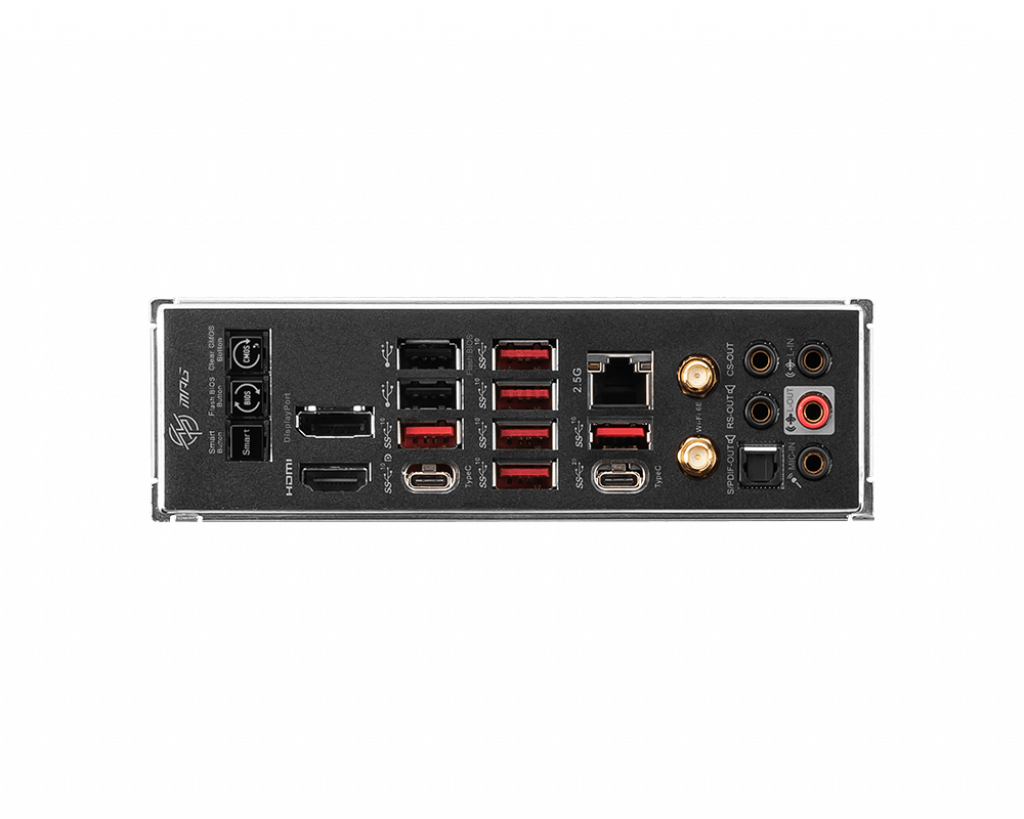

BACK PANEL PORTS |
|
OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
PCB DIMENSION | ATX 304.8mmx243.84mm |
