產品特色

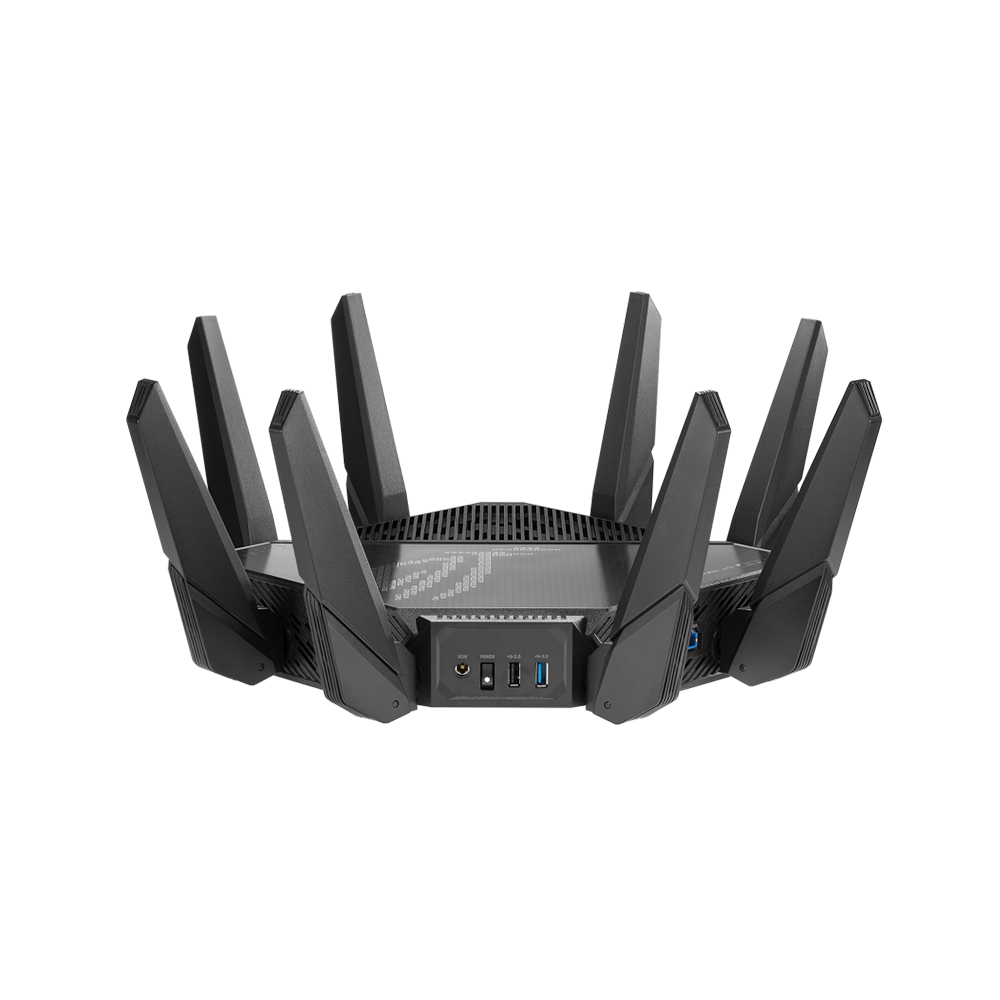

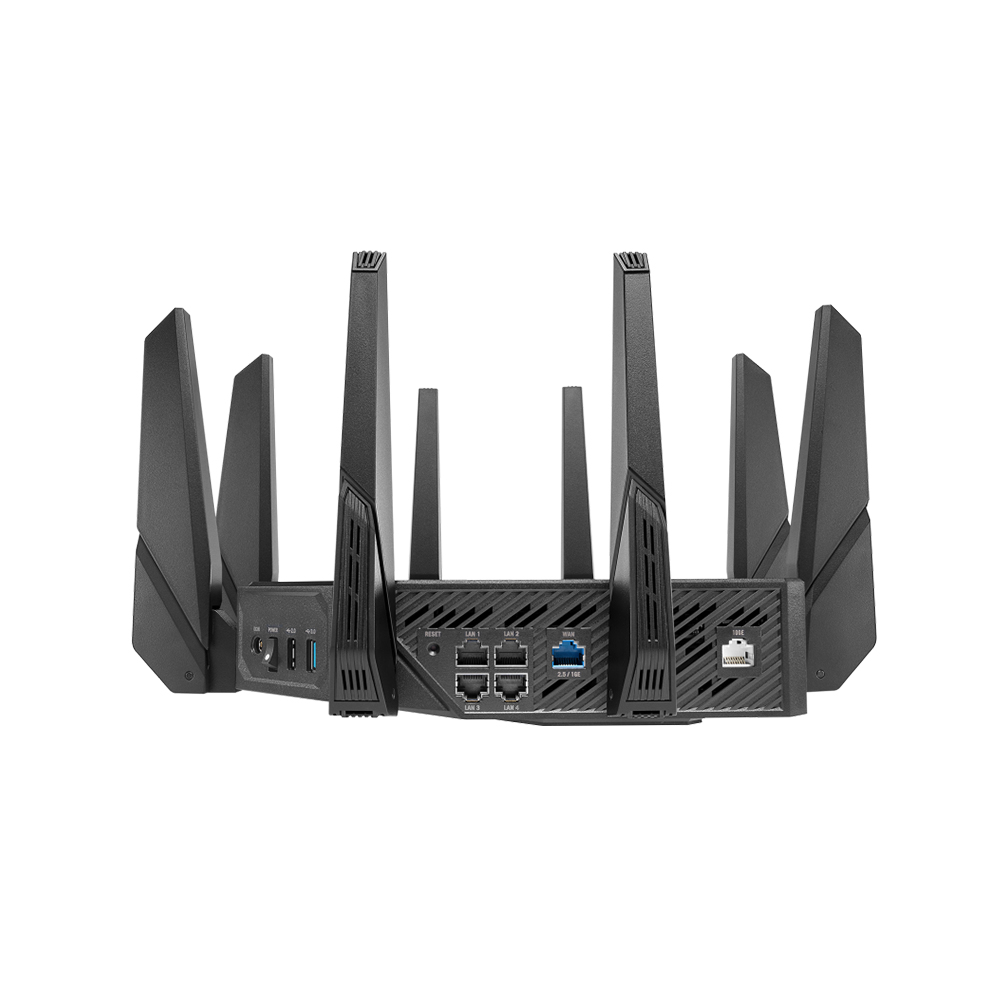

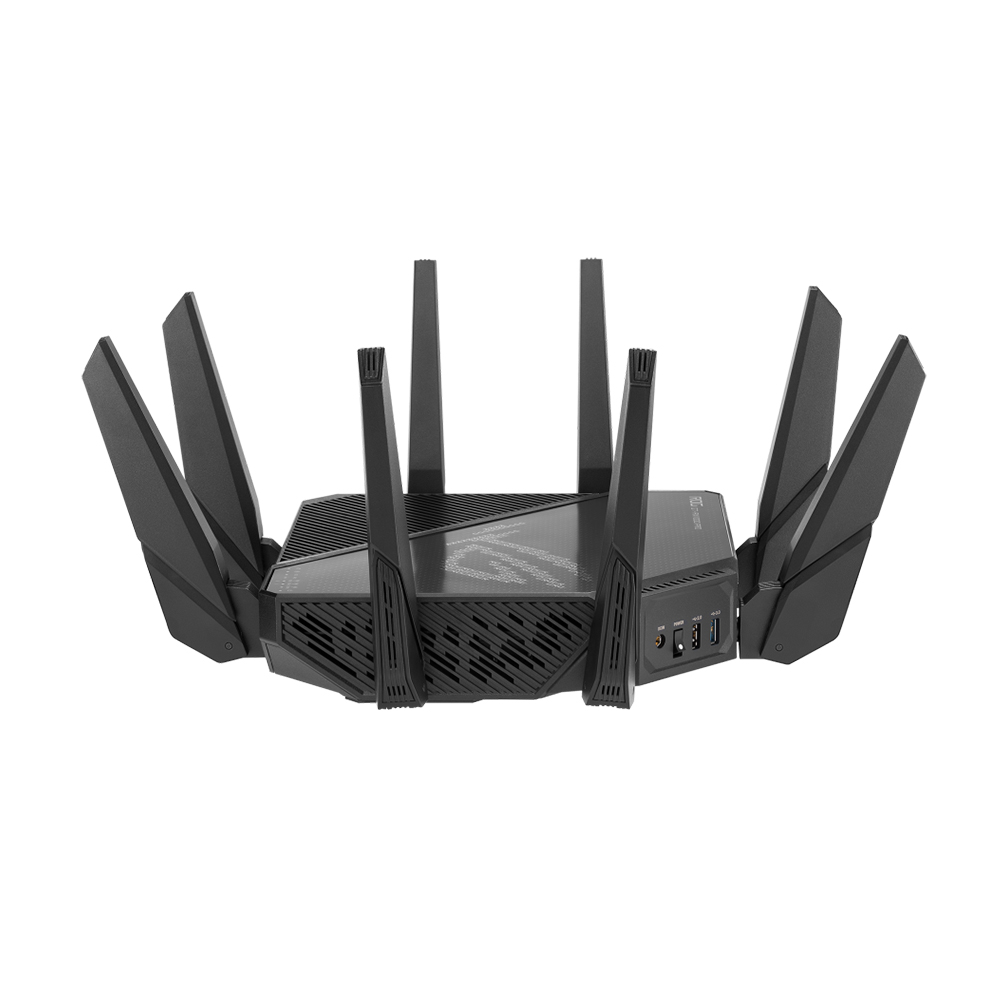

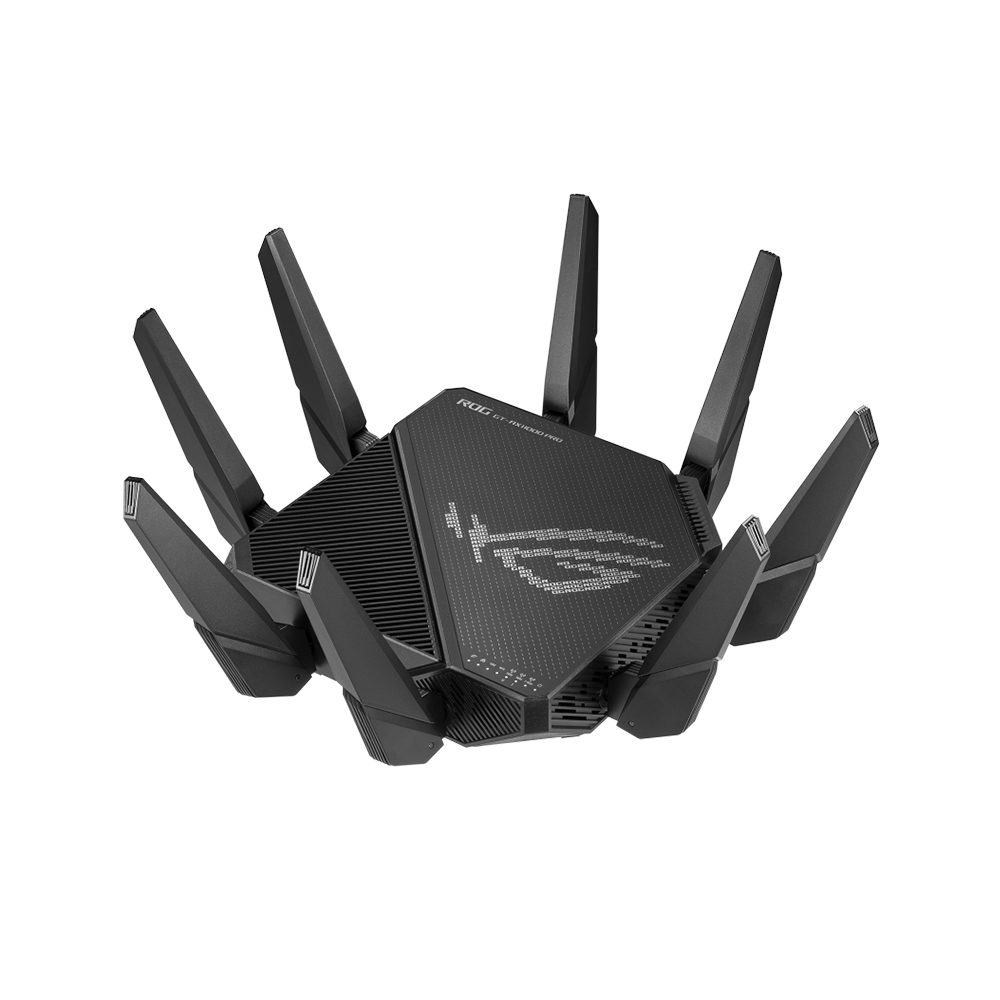

GT-AX11000 Pro 三頻 WiFi 6 電競路由器、2.5G 連接埠、商用級10G 連接埠、硬體強化、ASUS RangeBoost Plus、三段遊戲加速、終身免費防毒並支援 AiMesh
- 高效 WiFi 6 – 超快速 WiFi 6 三頻路由器可將速度提升至 11,000 Mbps，具有 160 MHz 通道，可實現更高的效率和傳輸量
- 更大的涵蓋範圍 – 獨家 ASUS RangeBoost Plus 可提升訊號範圍和整體覆蓋範圍
- 彈性的網路連接埠 – 一個 2.5G 連接埠和一個 10G 連接埠可設定為 WAN 或 LAN 運作
- 極致的四核心 CPU 運算能力 – 高效能 WiFi 晶片組和 64 位元 2.0 GHz 四核心 CPU 將無線訊號處理能力提升至更高境界
- 三段網路加速 – 從 PC 到遊戲收發器，線上遊戲的每個階段皆可獲得網路優先順序
產品規格
型號
網路標準
產品區段
AX技術
數據速率
- 2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, 達1148Mbps
- 5G-1Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, 達4804Mbps
- 5G-2Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, 達4804Mbps
天線
- External antenna x 8 (non-detachable)
傳送/接收
- 2.4 GHz 4 x 4
- 5 GHz-1 4 x 4
- 5 GHz-2 4 x 4
處理器
- 2.0GHz quad-core processor
記憶體
- 256MB NAND flash and 1GB DDR4 RAM
Wi-Fi技術
- OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
網路頻段
- Tri-band Wi-Fi: 2.4 GHz / 5 GHz-1 / 5 GHz-2
連接埠
- 1 x 2.5 Gigabit WAN Port 1 x 10 Gigabit WAN/LAN Port 4 x Gigabit LAN Ports 1 x USB 3.2 Gen 1 Port 1 x USB 2.0 Port
按鍵
- WPS Button, LED Button, Reset Button, Power Switch
LED指示燈
- Power x 1 2.4G x 1 5GHz-1 x 1 5GHz-2 x 1 WPS x 1 10GE x 1 LAN x 1 WAN x 1
電源
- AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 3.42 A ；19.5 V with max. 3.33 A
產品內容物
- GT-AX11000 Pro WiFi Gaming Router RJ-45 Cable Power Adapter Quick Start Guide Warranty Card
產品重量 (克)
AiMesh
- AiMesh
- Primary AiMesh router
- AiMesh node
路由器應用程式
遊戲
遊戲加速功能
ROG設備優先連線功能
具OpenNAT功能
Alexa
AiProtection
- AiProtection Pro
- Router Security Assessment
- Malicious site blocking
- Two-Way IPS
- Infected Device Prevention and Blocking
家長控制
- Parental Control家長貼心控管
- 家長貼心控管 - 網路使用排程
- Maximum Parental Control profile : 64
- Maximum Parental Control content filter rule : 64
網路流量控管
- Adaptive QoS
- Bandwidth Monitor
- Bandwidth limiter
- Maximum Bandwidth limiter rule : 32
- Traditional QoS
- Traffic Monitor
- Real-time traffic monitor
- Wired Traffic Monitor
- Wireless Traffic Monitor
- Traffic Analyzer
- Traffic analysis period : Daily, Weekly, Monthly
- Website history
無線相關規格
- IPv6
- MU-MIMO
- WiFi Encryption : WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, Open System
- UTF-8 SSID
- 訪客網路
- Maximum Guest Network rule : 2.4 GHz x 3, 5 GHz-1 x 3, 5 GHz-2 x 3
- 訪客網路連接限制
- Guest Network Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal
- WPS
- Wi-Fi MAC address filter
- Maximum MAC filters : 64
- Wireless scheduler
- Airtime fairness
- RADIUS Server
- Universal beamforming
WAN
- Explicit beamforming
- Internet connection Type : Automatic IP, Static IP, PPPoE, PPTP, L2TP
- Dual WAN
- WAN Aggregation
- 3G/4G LTE dongle
- Android tethering
- Port forwarding
- Maximum port forwarding rule : 64
- Port triggering
- Maximum port triggering rule : 32
- DMZ
- DDNS
- NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
- Let's Encrypt
LAN
- DHCP Server
- IGMP snooping
- IPTV
- LAN Link Aggregation
- Manually assign IP address
- Maximum manually assign IP address rule : 128
VPN
- VPN Client L2TP
- VPN Client OVPN
- VPN Client PPTP
- VPN Server IPSec
- VPN Server OVPN
- VPN Server PPTP
- VPN Fusion
USB應用
- File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
- HDD hibernation
- Safely Remove disk
- AiCloud
- Download master
- AiDisk
- Media Server
- Time Machine
- Samba Server
- FTP Server
- Shared Folder privileges
管理
- Operating mode : Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge
- Operating system : ASUSWRT
- Free OS upgrade
- Firewall
- Maximum Firewall keyword filter : 64
- Maximum Firewall network service filter : 32
- Maximum Firewall URL filter : 64
- Wake on LAN (WOL)
- SSH
- Configuration backup and restore
- Diagnosis tools
- Feedback system
- System log
