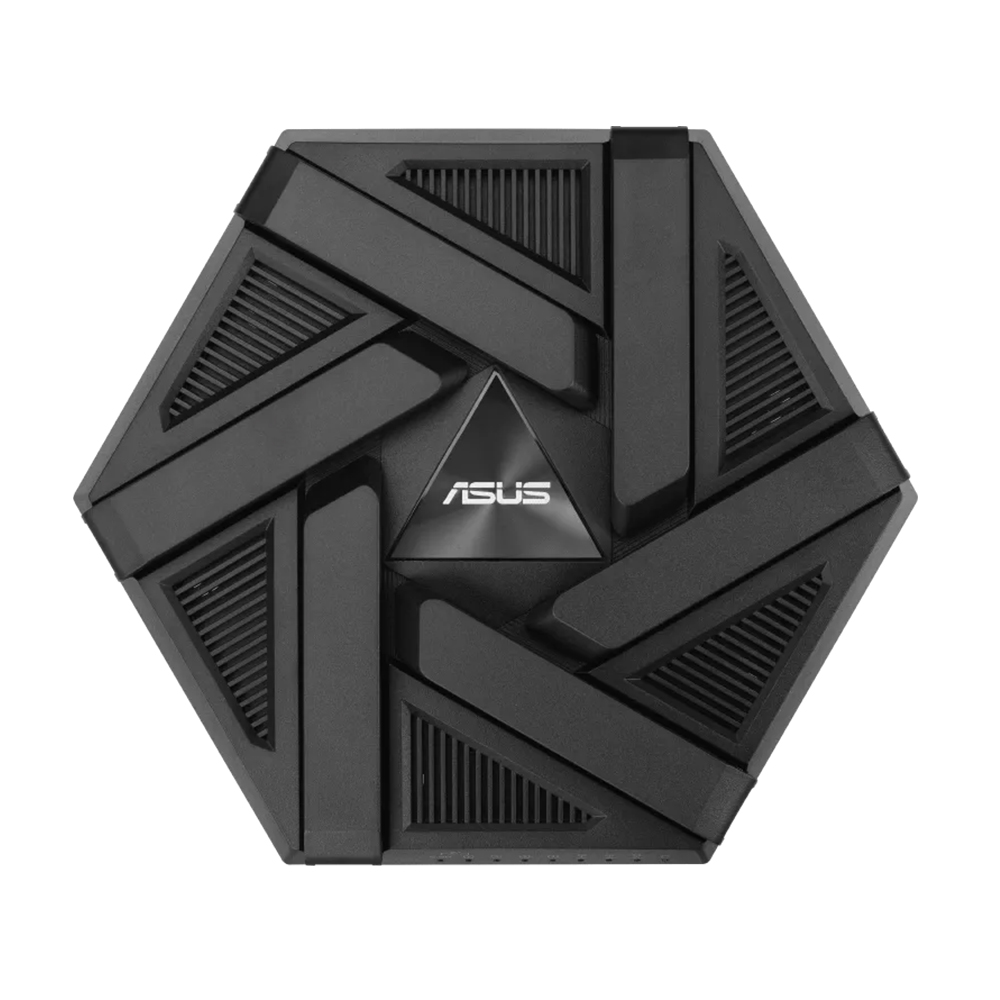

ASUS RT-AXE7800 Wireless-AXE7800 三頻路由器(WIFI 6E)(RT-AXE7800)

產品介紹

AXE7800 Tri-band WiFi 6E (802.11ax) Router, New 6GHz Band, ASUS Safe Browsing, Enhanced Network Security with AiProtection Pro and Instant Guard Sharable Secure VPN, Free Parental Controls, 2.5G Port, Link Aggregation

• Ultra-fast WiFi 6E Technology – The whole-new 6 GHz band dramatically increases network capacity, delivering higher WiFi performance and more stable connectivity with speeds up to 7800 Mbps.
• One-Tap Safe Browsing – Block undesirable content with ASUS Safe Browsing, and protect your kids online by filtering explicit content from search results.
• Enhanced Security Anywhere – Protect your home network with a free lifetime subscription to AiProtection Pro, powered by Trend Micro™. And when away from home, ASUS Instant Guard gives you a one-click sharable secure VPN.
• Free Parental Controls – More flexible customizations to protect your kids online.
• AiMesh Supported – Expand your wireless network with ASUS AiMesh-compatible routers and enjoy powerful, flexible and seamless whole-home WiFi.

產品規格

Network Standard

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)
• WiFi 6E (802.11ax)
• IPv4
• IPv6

Product Segment

• AXE7800 ultimate AX performance : 574+4804+2402 Mbps

AX technology

• Yes

Data Rate

• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• WiFi 4 (802.11n) : up to 300 Mbps
• WiFi 5 (802.11ac) : up to 500 Mbps
• WiFi 5 (802.11ac) (1024QAM) : up to 2167 Mbps
• WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
• WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
• WiFi 6E (802.11ax) (6GHz) : up to 2402 Mbps

Antenna

• External antenna x 6 (non-detachable)

Transmit/Receive

• 2.4GHz 2x2
• 5GHz 4x4
• 6GHz 2x2

Processor

• 1.7GHz quad-core processor

Memory

• 256 MB Flash and 512 MB DDR4 RAM

Boosts speed

• OFDMA (Orthogonal Frequency Division Multiple Access)
• Beamforming: standard-based and universal
• 1024-QAM high data rate
• 20/40/80/160 MHz bandwidth

Operating Frequency

• Tri-band Wi-Fi: 2.4 GHz / 5 GHz / 6 GHz

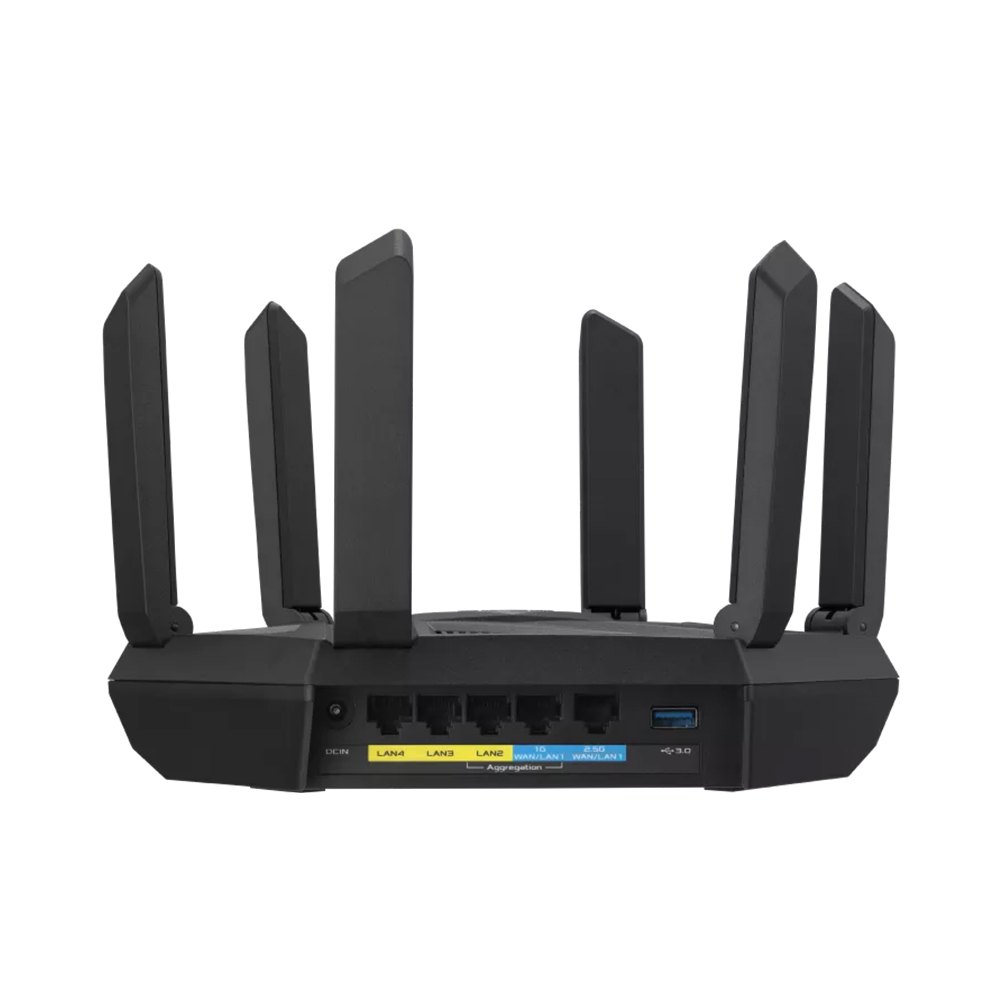

Ports

• 1 x 2.5G Mbps for WAN/LAN
• 1 x RJ45 10/100/1000Mbps for WAN/LAN
• 3 x RJ45 10/100/1000Mbps for LAN
• 1 x USB 3.2 Gen 1 Port

Button

• Power on/off switch
• Reset Button
• WPS Button

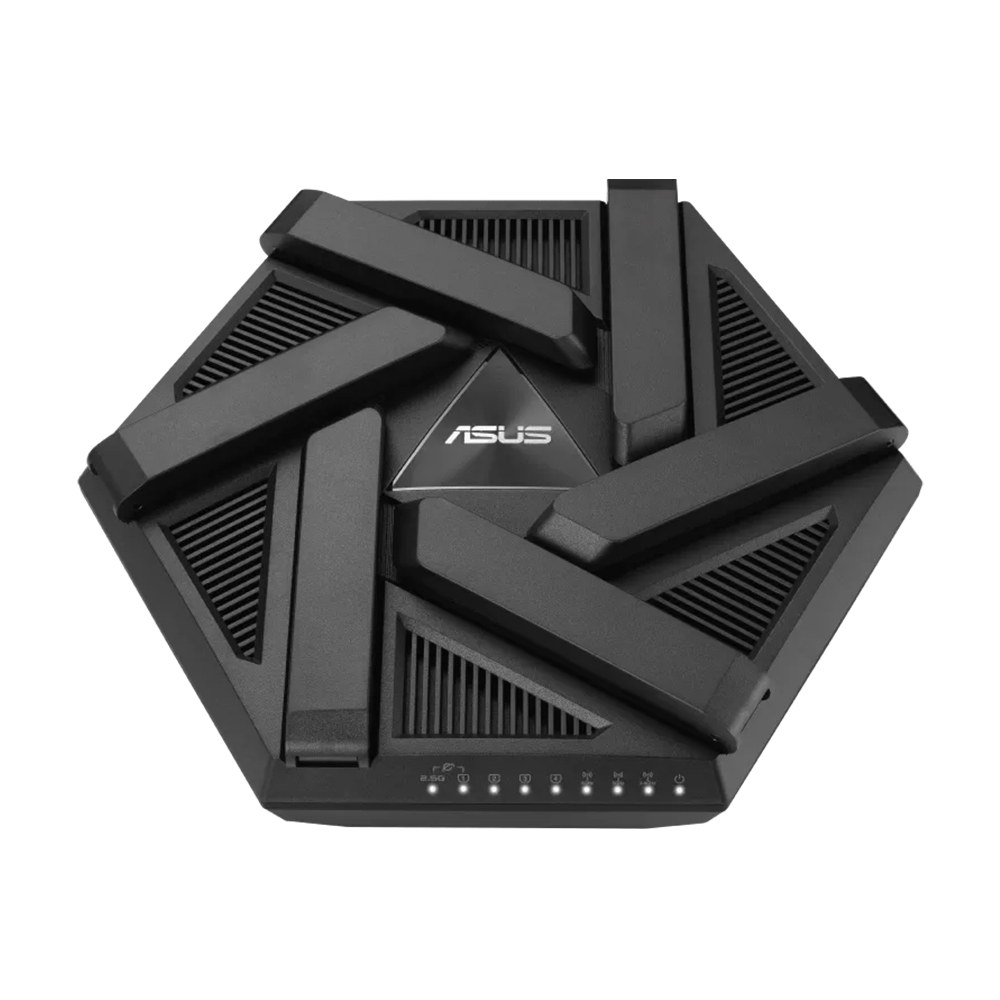

LED Indicator

• Power x 1
• 2.4GHz x 1
• 5GHz x 1
• 6HGz x 1
• 2.5G WAN/LAN1 x 1
• 1G WAN/LAN1 x 1
• 1G LAN x 3

Power Supply

• AC Input : 110V~240V(50~60Hz)
• DC Output: 12 V with max. 3.0 A current

Package content

• RT-AXE7800 WiFi Router
• RJ-45 Cable
• Power Adapter
• Quick Start Guide
• Warranty Card

Product Weight (g)

• 1033g

AiMesh

• AiMesh
• Primary AiMesh router
• AiMesh node

Router APP

• ASUS Router APP
• Alexa
• Support Alexa skill

AiProtection

• AiProtection Pro
• AiProtection
• Malicious site blocking
• Two-Way IPS
• Infected Device Prevention and Blocking

Parental Control

• Parental Control
• Parental Control Customized Internet schedule
• Maximum Parental Control profile : 64
• Maximum Parental Control content filter rule : 64

Traffic Control

• Adaptive QoS
• Bandwidth Monitor
• Bandwidth limiter
• Maximum Bandwidth limiter rule : 32
• Traditional QoS
• Maximum Traditional QoS rule : 32
• Traffic Monitor
• Real-time traffic monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
• Traffic Analyzer
• Traffic analysis period : Daily, Weekly, Monthly
• Website history

Wireless

• IPv6
• MU-MIMO
• Wi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
• UTF-8 SSID
• Guest Network
• Maximum Guest Network rule : 2.4 GHz x 3, 5 GHz-1 x 3, 6 GHz x 3
• Guest Network Connection time limit
• Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS
• WPS
• WiFi MAC address filter
• Maximum MAC filters : 64
• Wireless scheduler
• Airtime fairness
• RADIUS Client
• Universal beamforming
• Explicit beamforming

WAN

• Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
• Dual WAN
• WAN Aggregation
• 3G/4G LTE dongle
• Android tethering
• Port forwarding
• Maximum port forwarding rule : 64
• Port triggering
• Maximum port triggering rule : 32
• DMZ
• DDNS
• NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Passthrough, PPPoE relay
• Let's Encrypt
• Safe browsing
• DNS-over-TLS

LAN

• DHCP Server
• IPTV
• LAN Link Aggregation
• Manually assign IP address
• Maximum manually assign IP address rule : 64

VPN

• Instant Guard
• VPN Client L2TP
• VPN Client OVPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server OVPN
• VPN Server PPTP
• VPN Server WireGuard
• VPN Fusion

USB application

• File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
• 3G/4G LTE dongle
• HDD hibernation
• Safely Remove disk
• AiCloud
• Download master
• AiDisk
• Media Server
• Time Machine
• Samba Server
• FTP Server
• Shared Folder privileges

Administration

• Operating mode : Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge
• Operating system : ASUSWRT
• Free OS upgrade
• Firewall
• Maximum Firewall keyword filter : 64
• Maximum Firewall network service filter : 32
• Maximum Firewall URL filter : 64
• SSH
• Wake on LAN (WOL)
• Configuration backup and restore
• Diagnosis tools
• Feedback system
• System log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Security Scan
• Auto Firmware Update
