產品規格
CPU
- Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
- Supports Intel® Turbo Boost Technology 2.0
- and Intel® Turbo Boost Max Technology 3.0**
- * Refer to www.asus.com for CPU support list.
- ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Memory
- 4 x DIMM, Max. 128GB, DDR5
- 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
- OptiMem II
- * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Graphics
- 1 x HDMI® port**
- 2 x Intel® Thunderbolt™ 4 ports (USB
- Type-C®) support DisplayPort*** and Thunderbolt™ video outputs****
- * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
- ** Support 4K@60Hz as specified in HDMI 2.1.
- *** Support 8K@60Hz as specified in DisplayPort 1.4.
- **** Output at TBT4_E1 and TBT4_E2, the USB Type-C® ports right under RJ45 ports, each requires a USB-C to DisplayPort adapter cable. For display connection and video output configuration regarding DP IN and Intel® Thunderbolt™ 4 ports, please refer to the user manual for more details. VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
Intel® 13th & 12th Gen Processors*
- 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)
Intel® Z790 Chipset**
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports*
- Intel® 13th & 12th Gen Processors
- M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)**
- 8 x SATA 6Gb/s ports**
- * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
- ** M.2_4 slot shares bandwidth with SATA6G_5~8. SATA6G5~8 will be suspended once either a SATA or NVMe device is detected at M.2_4.
Ethernet
- 1 x Marvell® AQtion 10Gb Ethernet
- 1 x Intel® 2.5Gb Ethernet
- ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6E
- 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
- Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
- * WiFi 6E 6GHz regulatory may vary between countries.
- ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

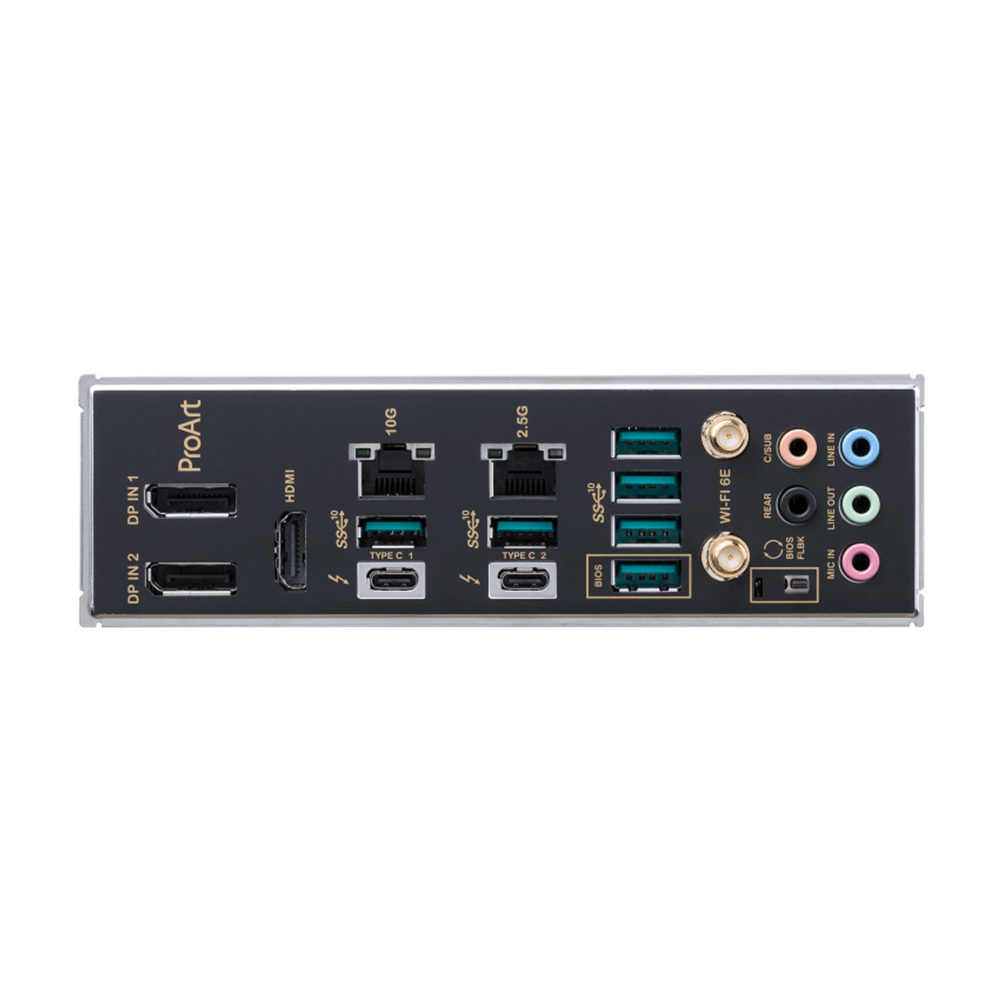

USB
Rear USB (Total 8 ports)
- 2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support
- 6 x USB 3.2 Gen 2 port(s) (6 x Type-A)
Front USB (Total 7 ports)
- 1 x USB 3.2 Gen 2x2 connector(s) (support(s) USB Type-C® with 60W PD 3.0 / QC 4+)
- 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
