產品規格
CPU
- Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
- * Refer to www.asus.com for CPU support list.
- ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Memory
- 4 x DIMM, Max. 128GB, DDR5
- 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800
- Non-ECC, Un-buffered Memory*
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
- OptiMem II
- * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
- ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Graphics
- 1 x DisplayPort**
- 1 x HDMI® port***
- * Graphics specifications may vary between CPU types. Please refer to ww.intel.com for any updates.
- ** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
- *** Supports 4K@60Hz as specified in HDMI 2.1.
- **** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
Intel® 13th & 12th Gen Processors
Intel® Z790 Chipset
- 1 x PCIe 4.0 x16 slot (supports x4 or x4/x4 mode)
- 1 x PCIe 3.0 x1 slot
- * Please check the PCIe bifurcation table
- on the support site (https://www.asus.com/support/FAQ/1037507/).
- ** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
- M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
- 4 x SATA 6Gb/s ports
- * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Ethernet
- 1 x Intel® 2.5Gb Ethernet
- ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6E
- 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
- Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3
- * WiFi 6E 6GHz regulatory may vary between countries.
- ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

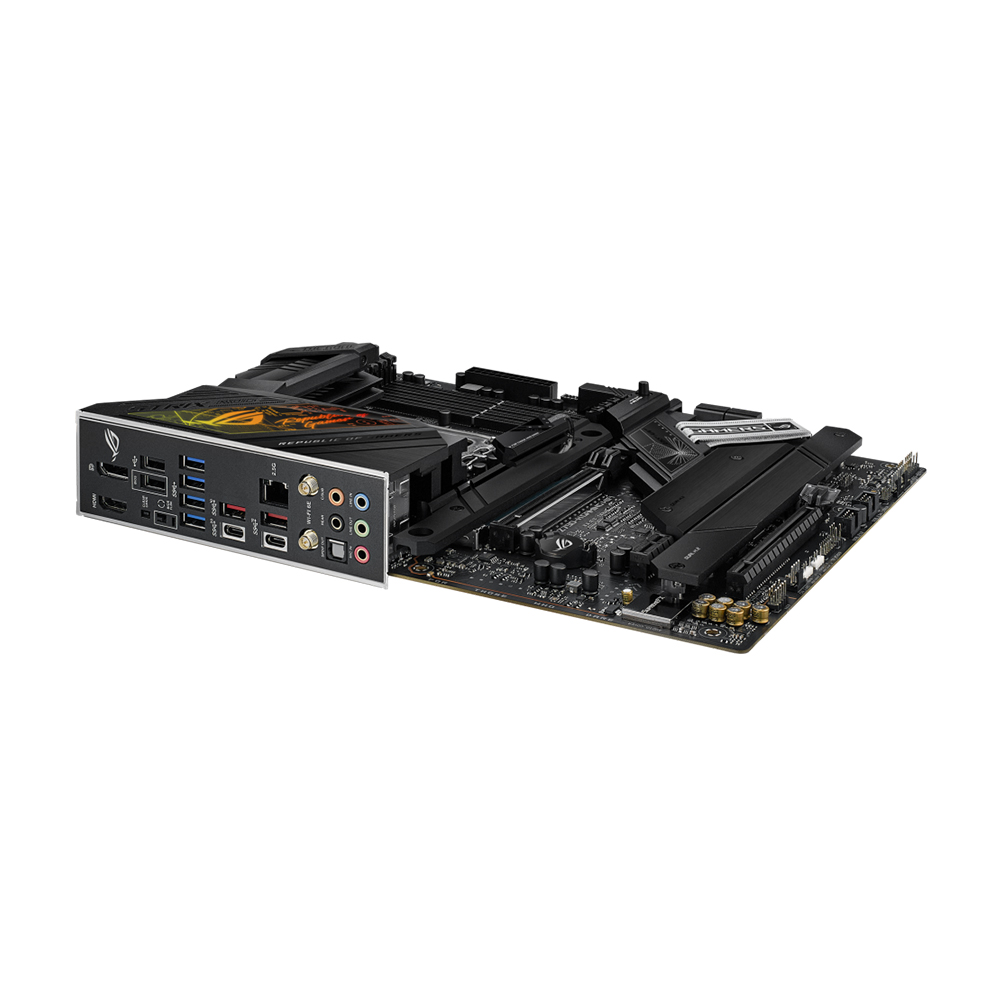

USB
Rear USB (Total 10 ports)
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
- 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
- 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
- 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
