Latest AMD Ryzen™ 7000 Series CPU
The UM773 Lite is equipped with the AMD Ryzen™ 7 7735HS processor. This CPU has 8 cores / 16 threads, and a frequency of 3.2 GHz to 4.75 GHz. It also provides new features like USB4, PCIe4.0 and DDR5(4800MHz).
The AMD Ryzen™ 7 7735HS integrates the AMD Radeon™ 680M graphics. Based on the RDNA™ 2 architecture, this integrated graphics performs well in both work and mid-range gaming.
The UM773 Lite offers satisfying results in productivity and entertainment. Finishing office routines, watching films, and playing games are easier than ever.

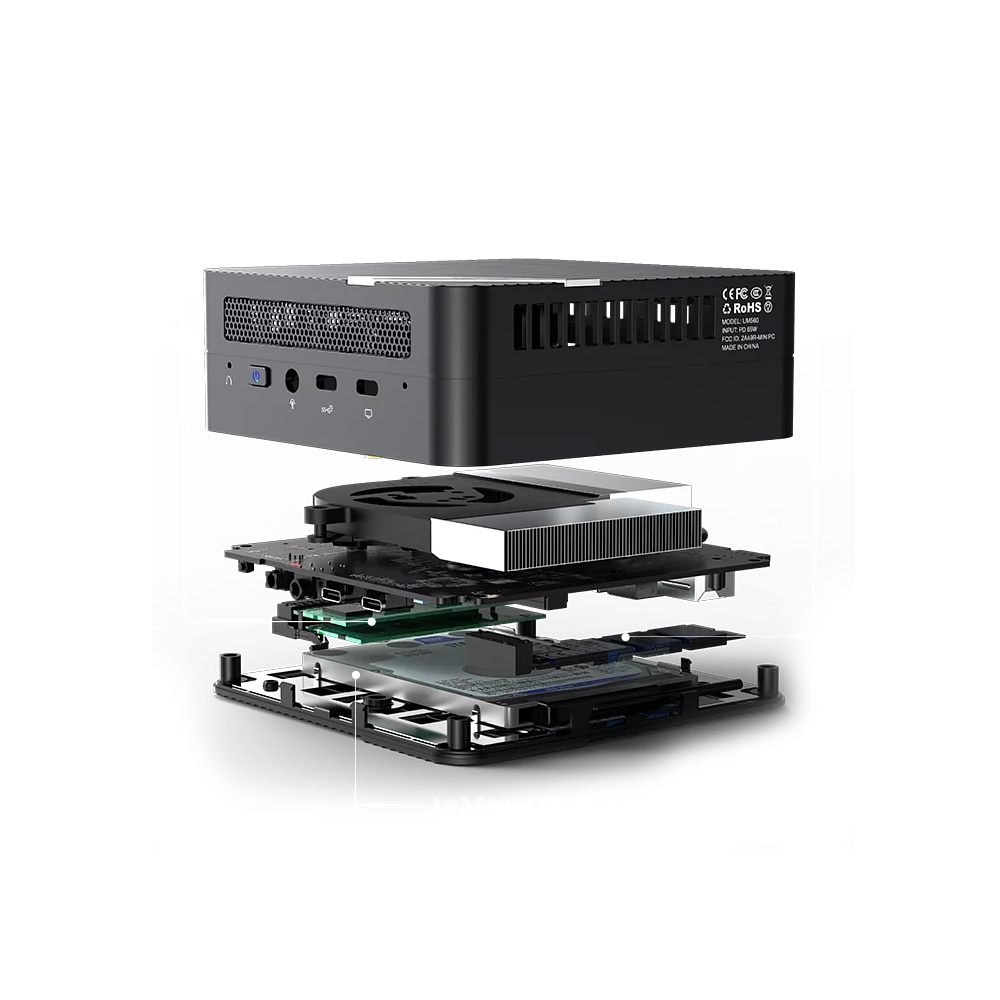

The UM773 Lite continues the upgrade-friendly design. The dual SODIMM slots for DDR5, M.2 2280 PCIe4.0 SSD slot and the 2.5-inch SATA 3.0 HDD slot are all available for further upgrade.
The thermal system allows the UM773 Lite to run at full load with relatively low temperatures and noise. The upgraded craftsmanship improves the stability and efficiency of liquid metal cooling. The liquid metal is able to transmit heat quickly. Furthermore, the smart fan with 120 blades can run at high RPM at a lower noise level.
The UM773 Lite is equipped with a high-speed USB4 port. This versatile port not only offers a data-transfer speed up to 40Gbps and 8K@60Hz display, but also supports portable monitor (5V3A power delivery).
The UM773 Lite can connect to three monitors at the same time and deliver a 4K@60Hz picture with great clarity for each monitor independently. The USB4 port can even support an amazing 8K@60Hz resolution.
Minisforum UM773 Lite
Processor
AMD Ryzen™ 7 7735HS , 8 Cores/16 Threads
Graphics
AMD Radeon™ 680M (Graphics Frequency 2200 MHz)
Memory
DDR5 Dual channel (SODIMM Slots ×2, up to 64GB)
Storage
M.2 2280 PCIe4.0 SSD
Storage Expansion
1×2.5 inch SATA HDD Slot (SATA 3.0 6.0Gb/s)
Wireless Connectivity
M.2 2230 WIFI Support (Wi-Fi,BlueTooth)
Video Output
HDMI (4K@60Hz) ×2
USB4 ×1
Audio Output
HDMI ×2
3.5mm Combo Jack ×1
Ports & Buttons
RJ45 2.5 Gigabit Ethernet Port ×1
USB3.2 Gen2 Type-C ×1 (Data Transfer, Right)
USB3.2 Gen2 Type-A ×2
USB2.0 Type-A ×2
USB4 Type-C ×1 (Left)
HDMI ×2
Clear CMOS ×1
DMIC ×1
3.5mm Combo Jack ×1
Power
DC 19V (adapter included)
System
Windows 11 Pro
