- Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
- LGA 1700
|
|
- 4x DDR5, Maximum Memory Capacity 192GB
- Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
- Max. overclocking frequency:
- • 1DPC 1R Max speed up to 6800+ MHz
- • 1DPC 2R Max speed up to 6400+ MHz
- • 2DPC 1R Max speed up to 6000+ MHz
- • 2DPC 2R Max speed up to 5600+ MHz
-
- Supports Intel® XMP 3.0 OC
- Supports Dual-Controller Dual-Channel mode
- Supports non-ECC, un-buffered memory
-
|
|
- 1x HDMI™
- Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
- 1x DisplayPort
- Support DP 1.4, maximum resolution of 4K 60Hz*
- *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
|
|
- 5x PCI-E x16 slot
- PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
- PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
|
|
- 2x M.2
- M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
- M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
- 4x SATA 6G
- * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
|
|
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
|
|
- 4x USB 2.0 (Rear)
- 4x USB 2.0 (Front)
- 2x USB 3.2 Gen1 Type A (Front)
- 1x USB 3.2 Gen1 Type C (Front)
- 2x USB 3.2 Gen2 Type A (Rear)
- 1x USB 3.2 Gen2 Type C (Rear)
|
|
- Realtek® RTL8125BG 2.5G LAN
|
|
- Intel® Wi-Fi 6E
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax
-
- Supports Bluetooth® 5.3, FIPS, FISMA
-
-
- * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
- ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
|
|
- Realtek® ALC897 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output
|
|
- 1x Power Connector(ATX_PWR)
- 2x Power Connector(CPU_PWR)
- 1x CPU Fan
- 1x Pump Fan
- 5x System Fan
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 1x Printer Port (JLPT)
- 1x Com Port (JCOM)
- 1x TBT connector (JTBT, supports RTD3)
- 2x Addressable V2 RGB LED connector (JARGB_V2)
- 1x RGB LED connector(JRGB)
- 1x TPM pin header(Support TPM 2.0)
- 4x USB 2.0 ports
- 2x USB 3.2 Gen1 Type A ports
- 1x USB 3.2 Gen1 Type C ports
|
|
|
|

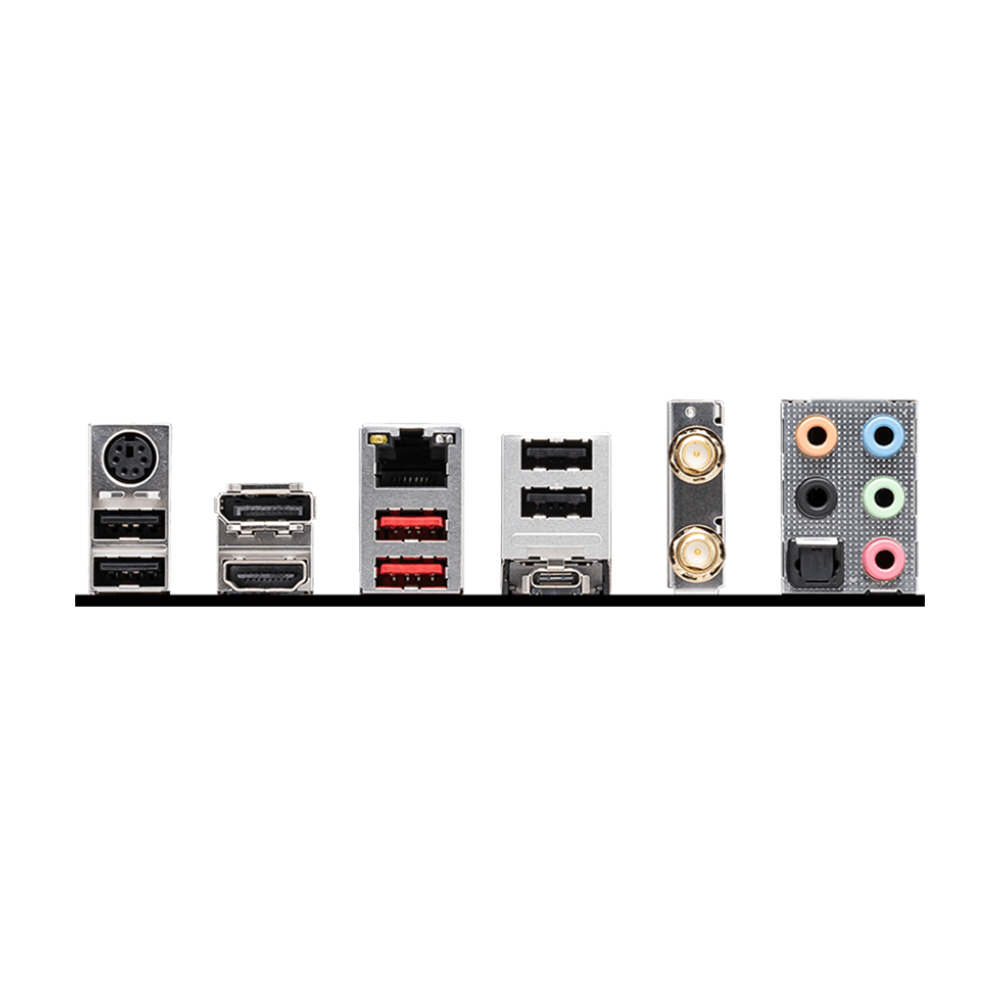

- Keyboard / Mouse
- DisplayPort
- 2.5G LAN
- USB 2.0
- Wi-Fi / Bluetooth
- Audio Connectors
- USB 2.0
- HDMI™
- USB 3.2 Gen 2 10Gbps (Type-A)
- USB 3.2 Gen 2 10Gbps (Type-C)
- S/PDIF-OUT
|
|
- Support for Windows® 11 64-bit, Windows® 10 64-bit
|
|
|
