- Supports 12th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1700 Socket
- LGA 1700
|
|
- 2x DDR4, Maximum Memory Capacity 64GB
- Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
- Max. overclocking frequency:
- • 1DPC 1R Max speed up to 4800+ MHz
- • 1DPC 2R Max speed up to 4600+ MHz
-
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
|
|
- 1x HDMI™
- Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
- 1x DisplayPort
- Support DP 1.4, maximum resolution of 4K 60Hz*
- 1x D-Sub
- Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
- *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
|
|
- 1x PCI-E x16 slot (Qty)
- 1x PCI-E x1 slot (Qty)
- PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
- PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
|
|
- 2x M.2 (Qty)
- M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
- M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
- 4x SATA 6G (Qty)
- * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
|
|
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
|
|
- 2x USB 2.0 (Rear)
- 4x USB 2.0 (Front)
- 4x USB 3.2 Gen1 Type A (Rear)
- 2x USB 3.2 Gen1 Type A (Front)
|
|
- Realtek® RTL8125B 2.5Gbps LAN
|
|
- Realtek® ALC897 Codec
- 7.1-Channel High Definition Audio
|
|
- 1x Power Connector(ATX_PWR)
- 1x Power Connector(CPU_PWR)
- 1x CPU Fan
- 2x System Fan
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 1x Com Port (JCOM)
- 2x Addressable V2 RGB LED connector (JARGB_V2)
- 1x RGB LED connector(JRGB)
- 1x TPM pin header(Support TPM 2.0)
- 4x USB 2.0 ports
- 2x USB 3.2 Gen1 Type A ports
|
|
|
|

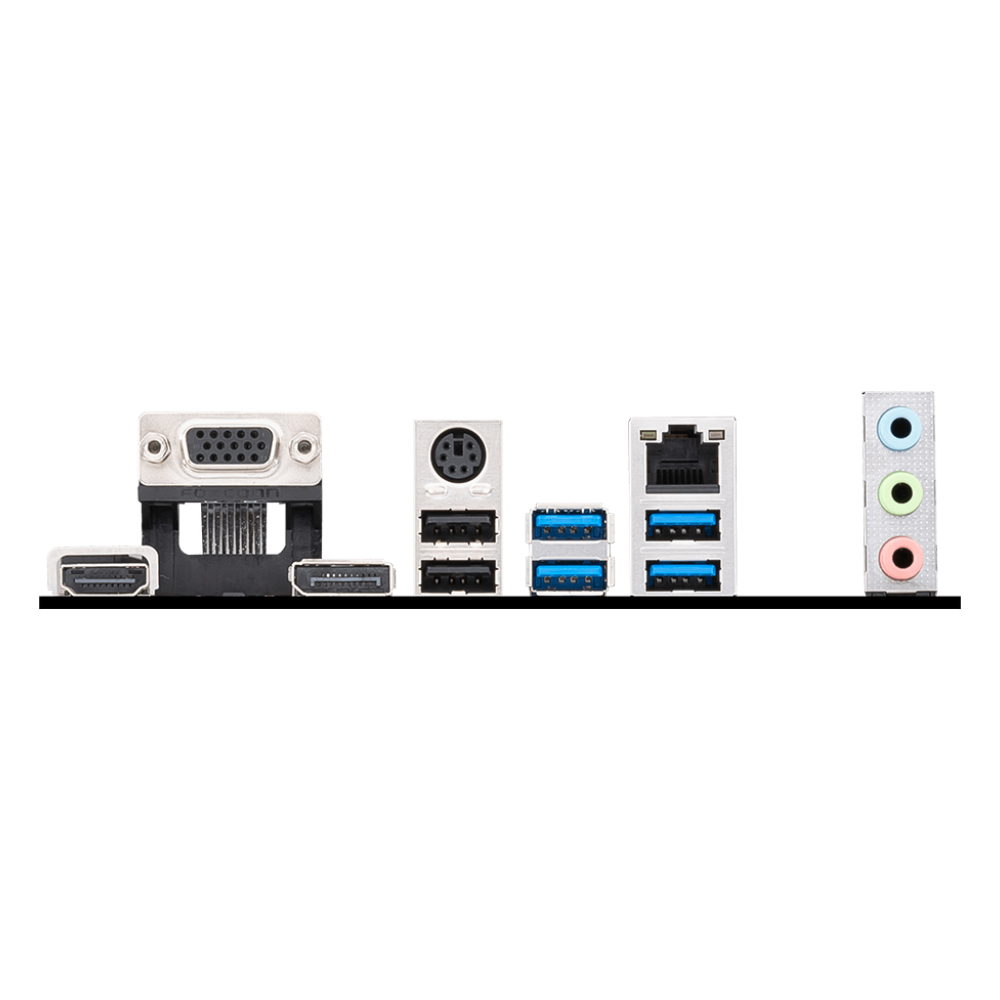

- HDMI™
- VGA
- DisplayPort
- Keyboard / Mouse
- 2.5G LAN
- Audio Connectors
- USB 2.0
- USB 3.2 Gen 1 5Gbps (Type-A)
|
|
- Support for Windows® 11 64-bit, Windows® 10 64-bit
|
|
|
