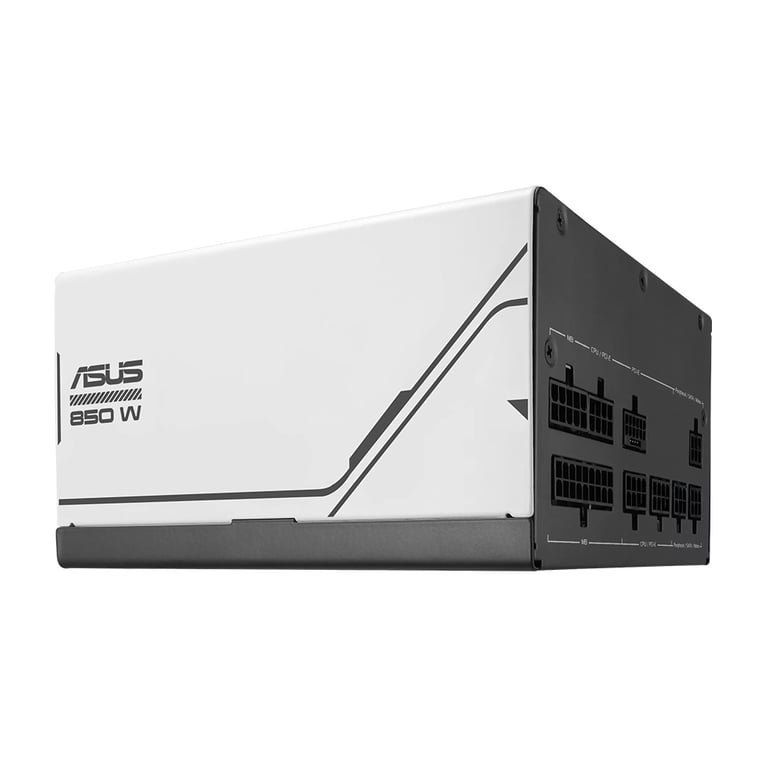

Model AP-850G
Intel Form Factor ATX12V
ATX 3.0 bYes
Dimensions b150 x 150 x 86 mm
Efficiency 80Plus Gold
Protection Features OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials ROHS
AC Input Range 100-240Vac
DC Output Voltage b +3.3V +5V +12V -12V +5Vsb
Maximum Load b20A20A70.5A 0.3A 2.5A
Combined Load b110W 110W 846W 3.6W 12.5W
Total Output b850W
Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 3
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5 16-pin Cable x 1 (675mm)
PCI-E Gen 5 (16-pin to 8-pin-8-pin) Cable x1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-3 Cable x 1 (400+150+150mm)
User Manual x 1
Weight 1.502 kg (single PSU)
0dB Fan Button No
