產品内容

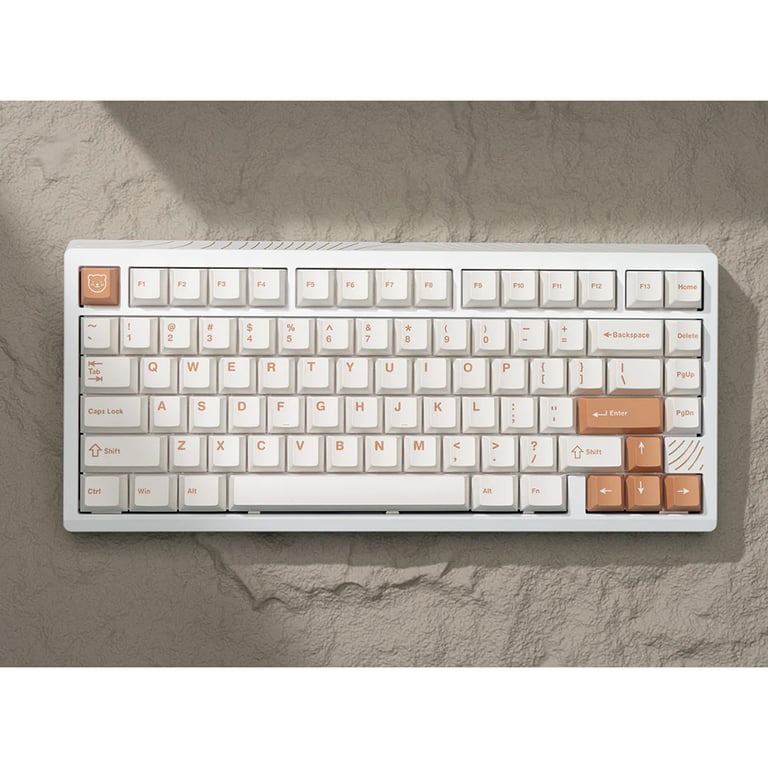

Keyboard Specifications:
- Gasket Mount Design
- 75% Layout
- PCB: 1.6mm, with Ai03 DB
- 5° Typing angle
- 22.14 mm front height
- Dimension: 323.6 x 145.78 x 34.73 (mm)
- Default plate: Alu
- Case Material: 6063 Aluminum
- Case Finish: Anodized+Infill (No Sparkles, No Chamfer)
- Backplate and External Weight: Anodized+Infill
- Switches Type: Gateron KS37B
- The Orientation of the Switches: North Facing
- No SS Internal Weight
- Boog 75 Wired Polling Rate: 1000hz
- QMK or VIA Support: No, customization requires to use of our independent driver.
- Total weight: About 3kg
Keycap Specifications:
- Manufacturer: WS PBT
- Keycap Material: Doubleshot PBT
- Keycap Thickness: 1.6mm
- Keycap Profile: Cherry
- Keys QTY: 81 keys
Switch Specifications:
- Product Name: GATERON KS-37B Magnetic Hall Sensor Keyboard Switch
- Initial Force:30±10gf.
- Total travel:4.0±0.2mm.
- Operation Lifetime:150,000,000 Cycles.
- Bottom Force: 50±10gf.
- Top Housing Material: Thermoplastic, Transparent
- Bottom Housing Material: Thermoplastic, Red
- Stem Material: Thermoplastic, Red
- Spring Material: Stainless steel
Highlights:
- Dual-rail structure for stability.
- Square magnet design, with freely adjustable magnetic pole orientation. Supports multi-directional Hall effect sensing.
- Extending the stem for better switch stability.
- Integrated spotlight lens design, enhancing light guidance.
- Every switch features a very tight housing and a very good coat of factory lube. No need to spend hours and hours lubing switches, they are good to go off the pack!
Kit Contents:
Fully Assembled Keyboard, including:
- Top and bottom cases
- HE Module(Magnetic Switch, Plate, Gasket, Sound absorbing foam, and PCB)
- Case foam
- The themed keycaps
- Tool accessories
