main spec |
Dimensions |
522 x 230 x 522 mm (DWH) |
Form Factor |
Full Tower |
Materials |
Steel + Plastic |
Mainboard Support |
E-ATX, ATX, Micro-ATX, ITX |
Front Access & Controls |
Power, Reset , USB 3.0 x 2, Type-C 10Gbps x 1, Headphone/Mic Combo Jack |

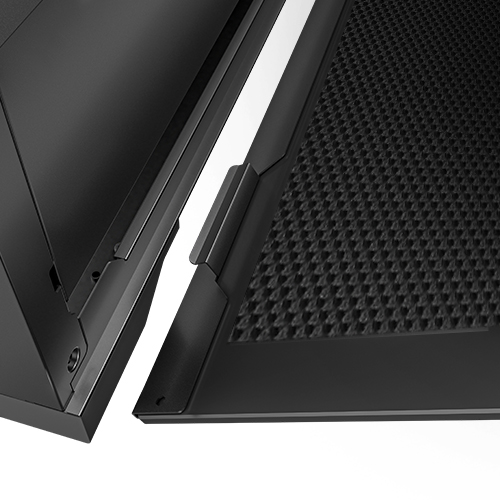

Side Panel |
Sound dampening Side Panel(Both Sides) |
|
Drive Bays |
Expansion Slots |
8 |
3.5" /2.5" |
2/2 |
2.5" |
3 |
|
Fan Support |
Front |
3 x 120mm / 3 x 140mm |
Top |
3 x 120mm / 3 x 140mm |
Power Supply Shroud |
3 x 120mm |
Rear |
1 x 120mm |
Included Fan(s) |
3 x 140mm PWM Silent fans in front + 1 x 120mm PWM Silent fan in rear |
|
Radiator Support |
Front |
120 / 140 / 240 / 280 / 360 / 420mm |
Top |
120 / 140 / 240 / 280 / 360mm |
Rear |
120mm |
|
Clearance |
Max GPU Length |
≤ 400mm |
Max CPU Cooler Height |
≤ 175mm |
Max PSU Length |
(Include cable) ≤ 245mm(with HDD)
(Include cable) ≤ 440mm(without HDD) |
|
Miscellaneous |

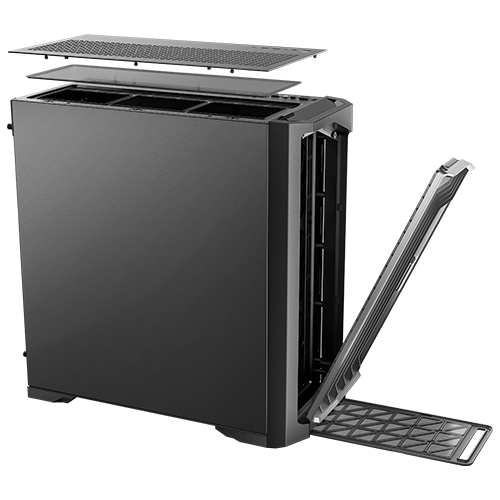

Dust Filter |
Front / Top / Bottom |
Net Weight |
12.08 Kg |
Gross Weight |
14.35 Kg |
|
|
|
