★Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards.
★Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card.
★80 PLUS® Bronze Certified, 85% 88% 85% Efficiency At 20% 50% 100% Rated Load.
★Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
★Comply With ATX 12V v2.3, EPS 12V v2.92 Specification.
★PCI-E (6+2) Pin Connector For High-End Graphic Card Requirement.
★OVP / OCP / OTP / SCP / OPP / NLP
★All Flat Cables.
★DC-DC Platform for higher stability.
★105°C Taiwanese Main Capacitor.

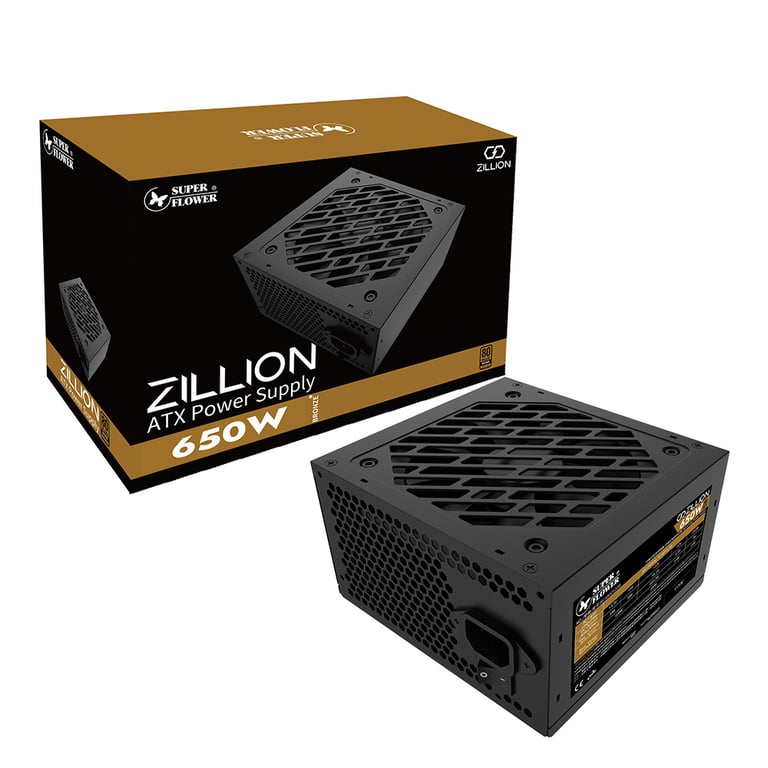

Model |
Zillion DB Bronze 650W |
|
Wattage |
650W |
|
Efficiency |
20%: 85% ; 50% : 88% ; 100% : 85% (230V EU Internal Bronze) |
|
Intel Power Design Guide |
ATX 12V v2.3, EPS 12V v2.92 Specification. |
|
AC Input / Frequency |
200V~240V | 50-60Hz |
|
Fan Size |
120mm Sleeve Fan |
|
Dimension |
140mm(L) x |
|
Protection |
OVP / OCP / OTP / SCP / OPP/ NLP |
|
Safety |
TÜV / CB / CE / RoHS |
|
Weight |
Around 1.5 KG |
|
Cable Spec |
||
20+4Pin |
Fixed Cables |
1 (500 mm) |
8Pin & (4+4Pin) CPU |
1 (600mm+150mm) |
|
PCI (PCI 6+2pin) |
1 (500mm) |
|
SLI (2 x PCI 6+2pin) |
1 (500mm+150mm) |
|
3SATA + 1PATA |
2 (450mm+150mm+150mm+150mm) |
model no.: SF-650Z12DB |
||||||
AC INPUT |
200-240V~ 6A 50-60Hz |
|||||
DC OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
5VSB |
|
650W |
Max Output Current |
18A |
18A |
54.1A |
0.3A |
3A |
Max Combined Wattage |
100W |
649.2W |
3.6W |
15W |
||
650W |
