Compact brilliance with USB-C connectivity and Height-Adjustable Stands for enhanced productivity

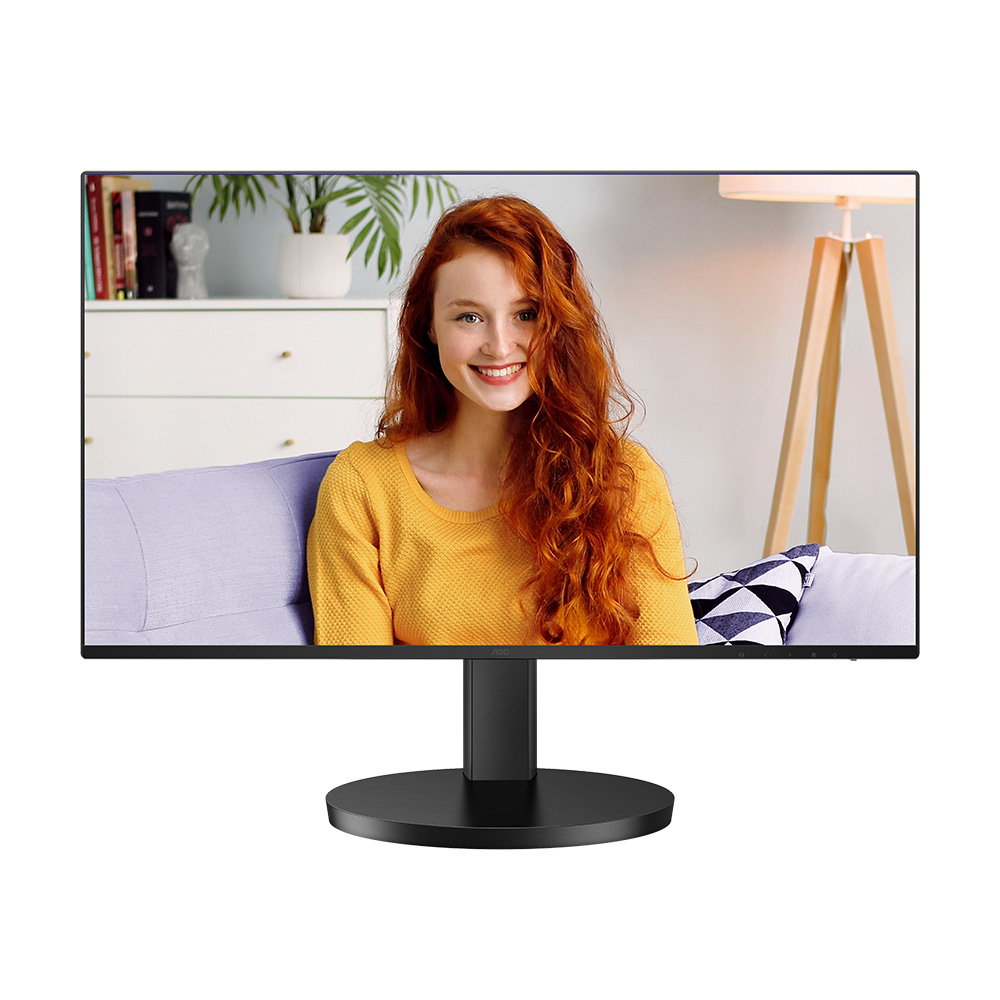

向你介紹 B3 系列的最新成員--一款採用 IPS 面板的 23.8 英寸顯示器,它具有令人驚歎的視覺效果和逼真的色彩。
如果你正在尋找一款小巧的顯示器,24B3CF2 將是你的理想選擇。
此外,它還提供 USB-C 介面,這意味著可以一石三鳥。
只需一根線纜,就能實現影片訊號、電源傳輸和資料傳輸,從而提高你的工作效率。

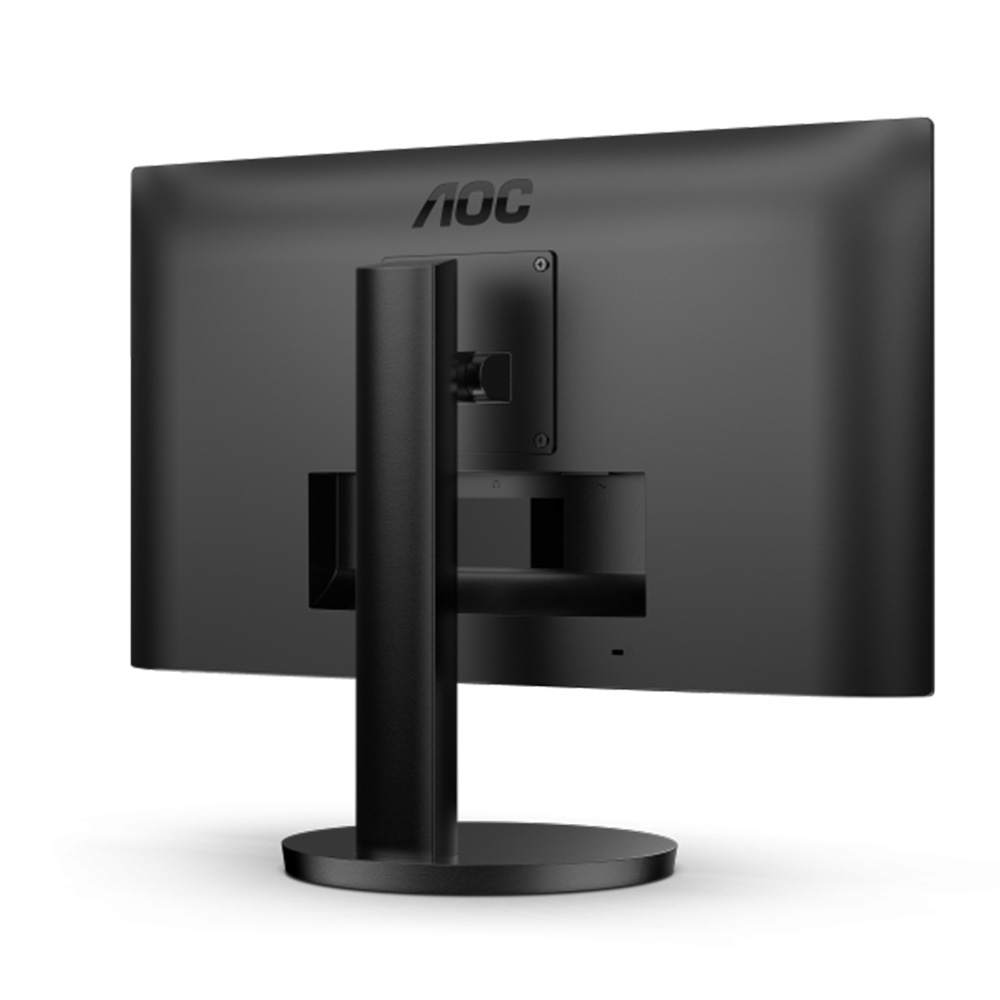

這款顯示器擁有可調節高度的支架,可將人體工程學功能無縫整合到你的工作空間中。
你可以根據自己的喜好自定義高度,從而獲得完美的視角,減少長時間工作或學習時對頸部和眼睛造成的負擔。
無論是工作還是學習,24B3CF2 緊湊的螢幕尺寸都能為你帶來更舒適、更愉快的觀看體驗。
23.8
SCREEN SIZE (CM)60.5
FLAT / CURVEDFlat
DISPLAY HARDNESS3H
PANEL TREATMENTAntiglare (AG)
PIXEL PITCH (MM)0.2745
PIXELS PER INCH93
PANEL RESOLUTION1920x1080
RESOLUTION NAMEFHD
ASPECT RATIO16:9
PANEL TYPEIPS
BACKLIGHT TYPEWLED
MAX REFRESH RATE100 Hz
RESPONSE TIME GTG4 ms
RESPONSE TIME MPRT1 ms
STATIC CONTRAST RATIO1300:1
DYNAMIC CONTRAST RATIO20M:1
VIEWING ANGLE (CR10)178/178
DISPLAY COLOURS16.7 Million
BRIGHTNESS IN NITS250 cd/m2
OD RESPONSE (TYPICAL)4 ms GtG
PANEL HAZE VALUE25%
PANEL PPI93
LOCAL DIMMING ZONESGlobal Dimming
Adaptive Sync
HDR (HIGH DYNAMIC RANGE)HDR Mode
BLUE LIGHT TECHNOLOGYLow Blue Light
FLICKER-FREEFlicker Free
KVMNo
Ultra Narrow
BEZEL COLOUR (FRONT)Black
BEZEL FINISHING (FRONT)Texture
CABINET COLOUR (BACKSIDE)Black
CABINET FINISHING (BACKSIDE)Texture
REMOVABLE STAND✓
SPEAKERS✓
SPEAKER POWER2 W x 2
KENSINGTON LOCK✓
VESA WALLMOUNT100x100
I/O DEFINE: CONNECTORS ON REAR CABINETVertical insert
VESA MOUNT SCREW SPECM4 x 10
BUILT-IN SPEAKERS FIRE DIRECTIONBack fire
VESA MOUNT SUPPORTYes
MONITORWEBCAMNo
-5 (+3/-0) ~ +23 (-3/+0)
HEIGHT ADJUST (MM)110mm
SWIVELNo
PIVOTNo
No
CARTON MATERIALPaper
CARTON MATERIAL PRINTWater Print (Brown Carton)
Internal
POWER SOURCE100 - 240V 50/60Hz
POWER CONSUMPTION ON (MAXIMUM) IN WATTS130
POWER CONSUMPTION ON (TYPICAL) IN WATTS30
POWER CONSUMPTION STANDBY IN WATTS0.5
POWER CONSUMPTION OFF IN WATTS0.3
POWER LED INDICATOR (OPERATION)White/Blue
POWER LED INDICATOR (STANDBY)Orange
HDMI 1.4 x 1
DIGITAL HDCP (HDMI VERSION)HDCP 1.4
USB-C CONNECTIVITYUSB-C 3.2 x 1 (DP alt mode, upstream, power delivery up to 65 W)
USB HUB✓
USB HUB SPEEDUSB 3.2 (Gen 1)
USB DOWNSTREAM PORTS2
USB FAST CHARGE PORT✓
AUDIO OUTPUT1x Audio out
MINI USB (FOR EXTERNAL KEYPAD)No
THUNDERBOLT IN0x
THUNDERBOLT OUT0x
PD FOR USB C/TBTUSB C1 : PD=65W, PD3.0, 5V/3A, 7V/3A, 9V/3A, 10V/3A, 12V/3A, 15V/3A, 20V/3.25A
USB HUB UP STREAM1 x USB3.2 type C Gen 1, 5 Gbit/s
D-SUB (VGA)0x
DVI0x
RJ45No
542.4 x (359.9-469.9) x 229.8
PRODUCT DIMENSIONS EXCL. BASE (WXHXD) MM542.4 x 316.2 x 44.6
PACKAGING DIMENSIONS (WXHXD) MM613 x 519 x 162
PACKAGING DIMENSIONS (WXHXD) MM (CN)613 x 519 x 162
GROSS WEIGHT INCL. PACKAGE (IN KG)7.04
NET WEIGHT EXCL. PACKAGE (IN KG)4.56
GROSS WEIGHT INCL. PACKAGE (IN KG) (CN)7.04
PRODUCT WITHOUT STAND (KG)3.04
1.5
USB-C TO C CABLE1.8
POWER CABLE✓
POWER ADAPTOR✓
4038986141437
OSD LANGUAGESEnglish, Ukranian, Turkish, Polish, German, Portuguese, Spanish, French, Finnish, Korean, Japanese, Chinese (simplified), Chinese (traditional), Swedish, Dutch, Italian, Kroatian, Russian, Czech
WARRANTY PERIOD3 years
MTBF (INCLUDING PANEL)30.000 hours
OPERATION SYSTEMWindows 8.1/10/11, MacOS
OSD TYPENormal
PLUG & PLAY COMPATIBILITYYes, DDC/CI
1920 x 1080
MAX RESOLUTION BY INPUT1920 x 1080
MAX RESOLUTION FOR USB C/TBT (WITH USB INFORMATION)8 bit panel [email protected] + source HBR2: FHD 100Hz
