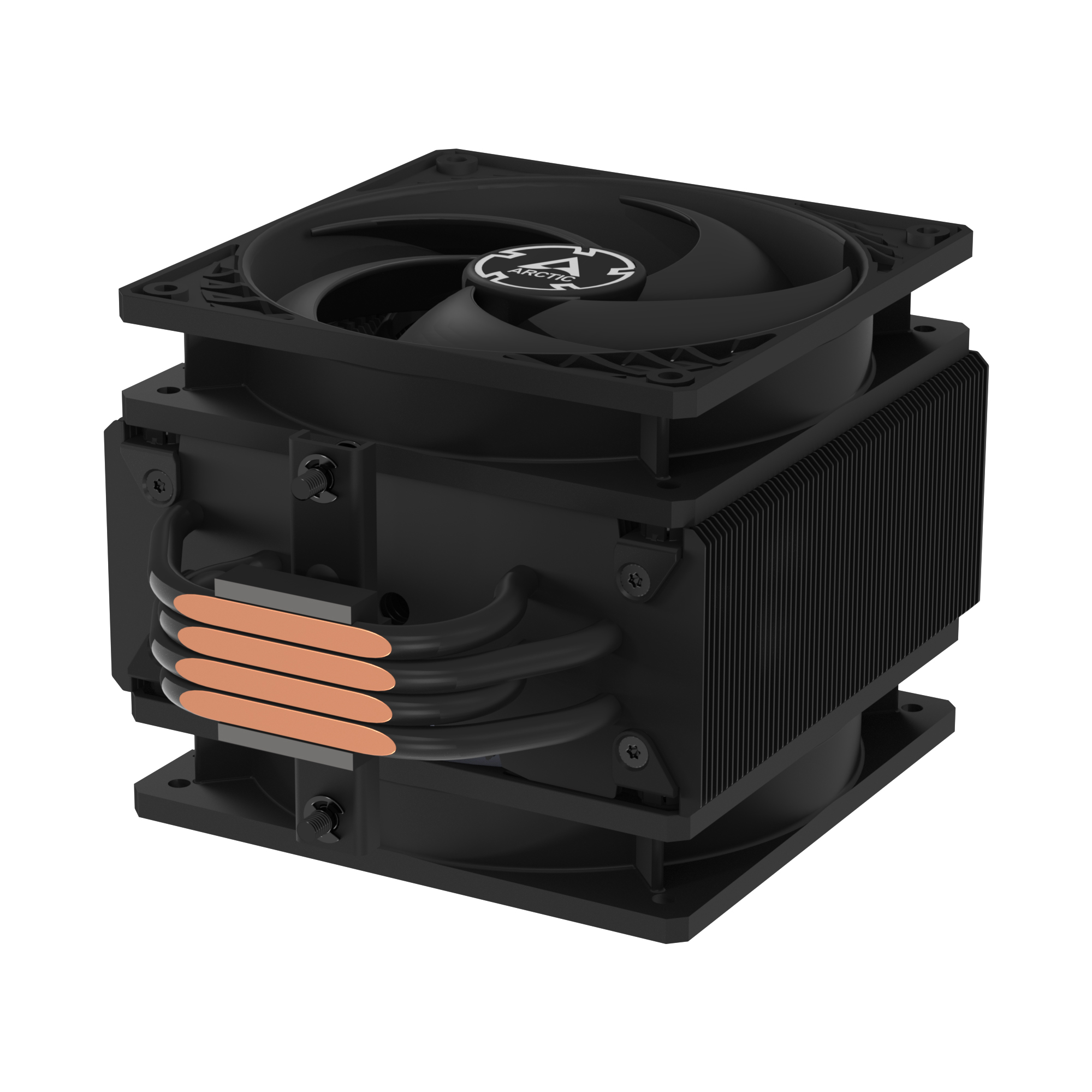

With its push-pull configuration, the Freezer 36 not only impresses with its efficient cooling performance, but also with its design. The soldered ends of the heatpipes are concealed by the screwed aluminium cover, allowing it to blend seamlessly into any PC setup and highlight both performance and appearance.
The Freezer 36 is multi-compatible with Intel and AMD sockets. Intel will release the new Arrow Lake processors on the LGA1851 socket in the future. ARCTIC customers don't need to worry that the new CPUs will also require new coolers. We guarantee full compatibility. All Freezer 36 can be used with the new LGA1851 socket from Intel without limitation.
Thanks to the innovative mounting system, booth fans are effortlessly mounted in the heatsink using a click system. This mounting method eliminates the need for fan clips, making it easier to install the cooler or replace the fans, even if the cooler is already installed. The Freezer 36 is therefore compatible with most 120 mm fans.
Intel's Independent Loading Mechanism (ILM) deforms the CPU by pressing it into the socket at two points with over 40 kg. This causes pressure in the PCB, the DIE and the solder layer between the DIE and IHS (Integrated Heat Spreader). With high thermal load, this can lead to long-term problems. The mounting frame from ARCTIC does not deform the CPU, reduces the mechanical load on the CPU massively, is quick and easy to install and allows the cooler to be screwed onto the CPU's backplate. As a result, mechanical stress on the mainboard and CPU is minimised, cooling performance remains consistent and installation is quick and uncomplicated.
Thanks to a combination of alloy and lubricant developed in Germany, friction within the bearing is minimised and greater efficiency is achieved. In addition to preventing lubricant loss, wear on the pin and sleeve is also minimised. In this way, less heat is generated, less bearing noise is produced and the service life of the fan is significantly extended.

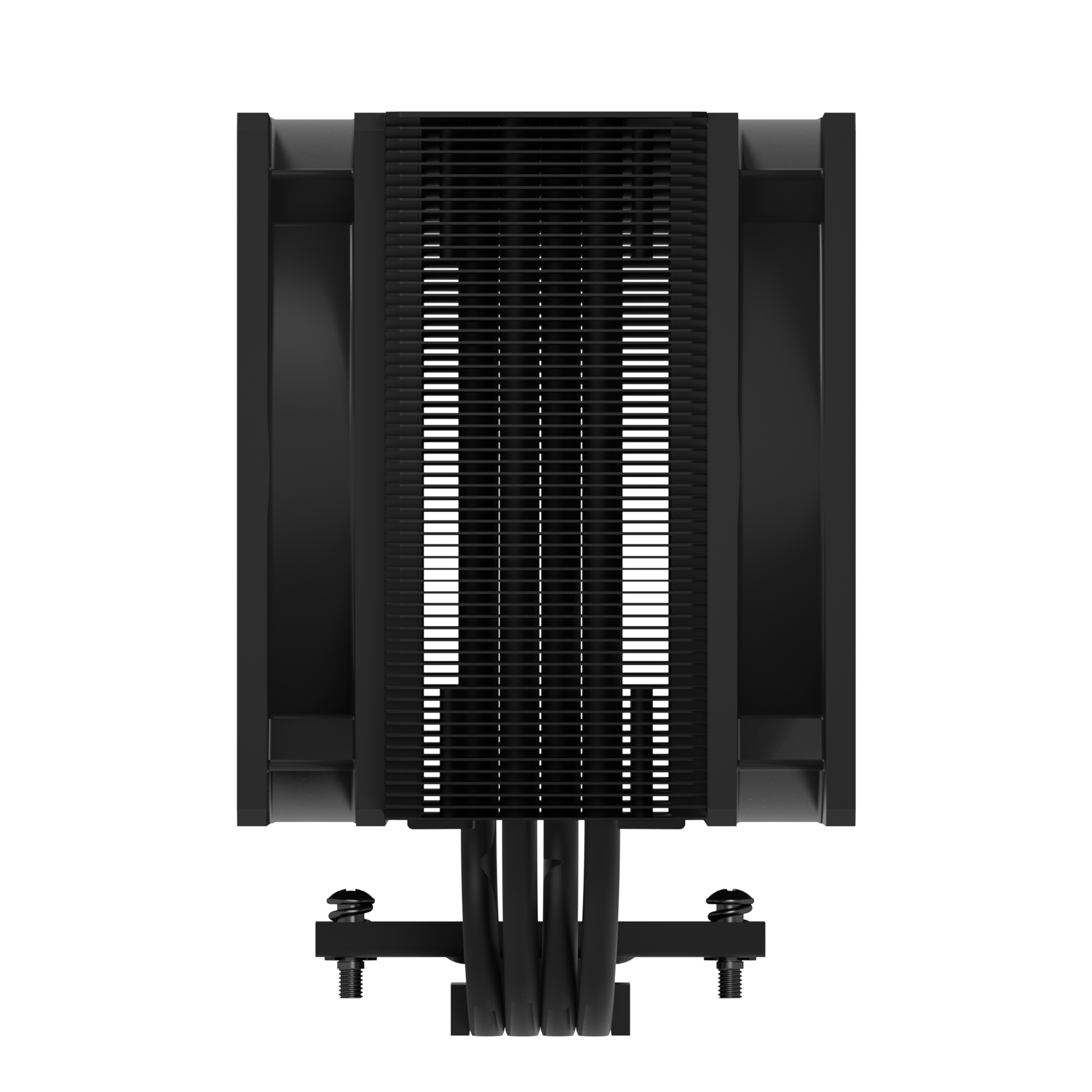

The fins of the heatsink are open at the side and allow the pull fan to draw additional cool air out of the pc case through the heatsink. This side-flow design achieves even more efficient ventilation.

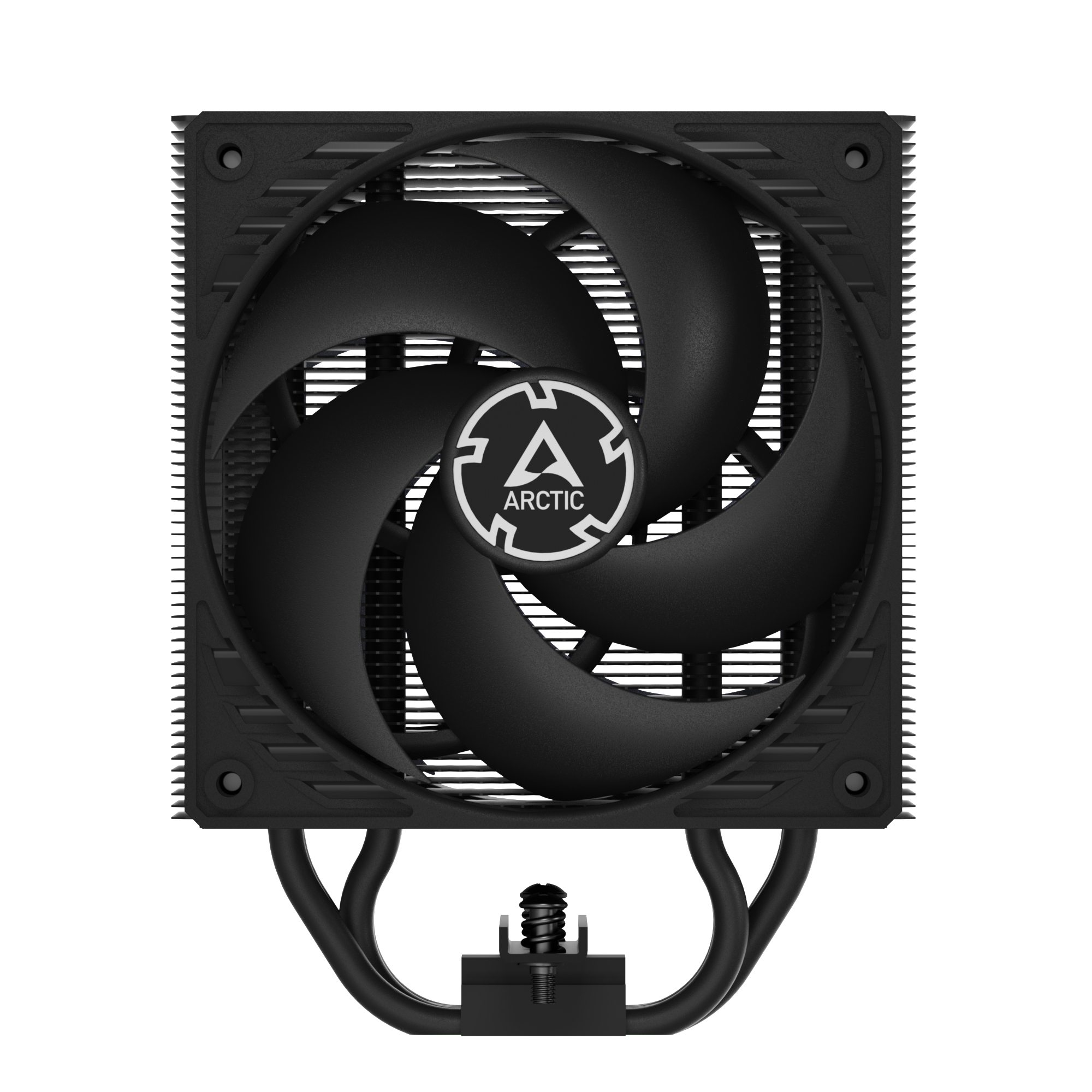

ARCTIC relies on the proven P fans, which are known for their powerful performance. The P series is particularly suitable for use on heat sinks and radiators. Due to the dense fin structure of heat sinks, the fans used achieve significantly better performance than fans designed for airflow thanks to their high static pressure.
Intel:
LGA1851 | LGA1700
AMD:
AM5 | AM4
PI | NNPI:
250 | 234
TIM:
MX-6 (0.8 g)
Warranty:
6 Years
Operating Ambient Temperature:
0—40 °C

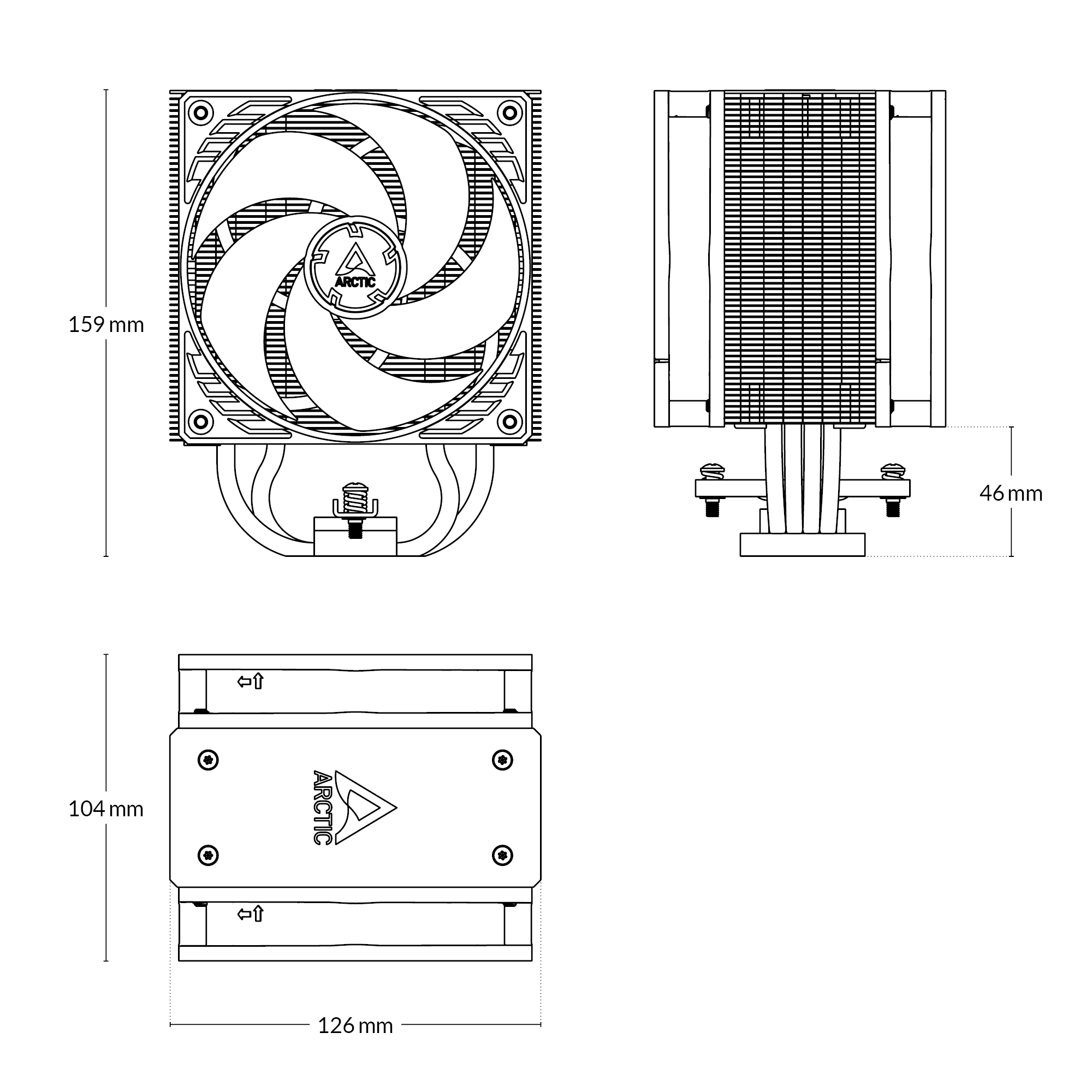

Dimensions:
104 (L) x 126 (W) x 159 (H) mm
Weight:
890 g
Heatsink
Heatpipes:
4x 6 mm Ø, Copper
Fin Stack:
59x 0.4 mm, Aluminium
Fans
Fan:
2x P12 PWM PST
Speed:
200 - 1800 rpm, PWM Controlled (0 rpm below 5 % PWM)
Bearing:
Fluid Dynamic Bearing
Current | Voltage:
0.10 A | 12 V DC
Cable Lenght:
200 mm + 80 mm Splitter Cable
Connector:
4-Pin PWM-Connector + 4-Pin Plug
