Battle Ax Backplate: Improved backplate design that provides structural rigidity and passive heat dissipation.
Hollow Back Panel: A hollow back panel design that allows airflow to freely pass through the heatsink. This design greatly improves heat dissipation compared to conventional GPU air cooling designs.
Efficient Airflow: With triple fans to improve air pressure and inlet volume, supporting auto-stop technology.
Reflow Soldering Technique: The process ensures that the thermal tube and the fin fit perfectly, optimizing heat dissipation performance and achieving excellent heat dissipation effects.

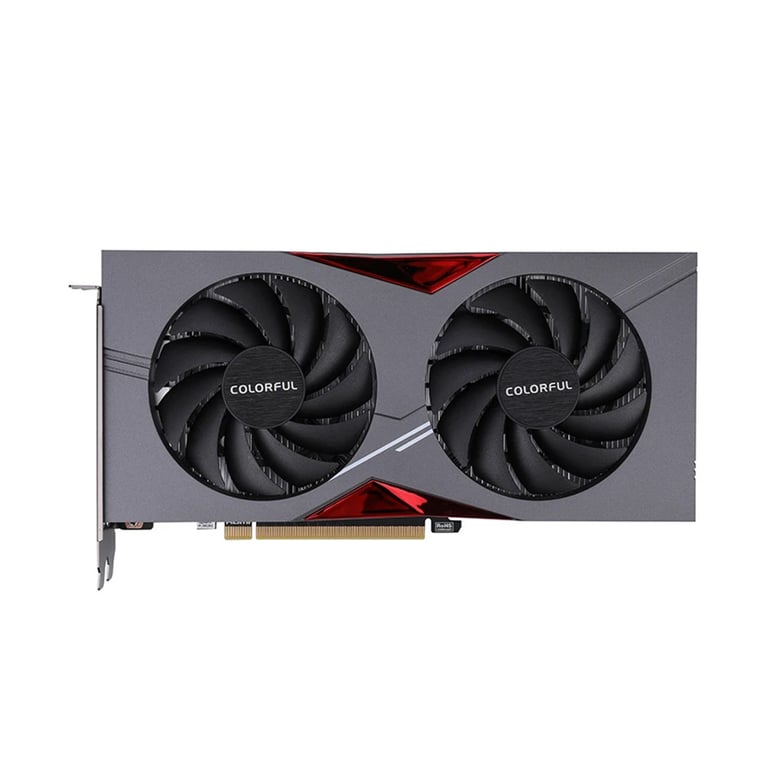

Model | Colorful GeForce RTX 4060 NB DUO 8GB-V |
---|---|
Chip Series | GeForce® RTX 4060 |
Product Series | Colorful Series |
GPU Code Name | AD107 |
CUDA Cores | 3072 |
Core Clock | Base:1830Mhz; Boost:2460Mhz |
Memory Clock | 17Gbps |
Memory Size | 8GB |
Memory Bus Width | 128bit |
Memory Type | GDDR6 |
Memory Bandwidth | 272GB/s |
Power Connector | 8pin |
Power Supply | 4+1 |
TDP | 115W |
Display Ports | 3*DP+HDMI |
Fans Type | FAN |
Heat Pipe Number/Spec | 2*Φ6 |
Auto Stop Technology | Y |
Power Suggest | 450W |
DirectX | DirectX 12 Ultimate/OpenGL4.6 |
NV technology Support | NVIDIA DLSS 3, NVIDIA G-SYNC, 3rd Gen Ray Tracing Cores |
Slot Number | 2 Slot |
Product Size | 248.9*135*41.9mm |
Product Weight | 0.81KG(N.W) |
Accessories | Warranty Card,Manual |
