Model | CS-H6c-R105-1L2WF |
---|---|
Camera | |
Image sensor | F1.6@1/3″ Progressive Scan CMOS |
Shutter Speed | Self-adaptive shutter |
Lens | 4mm, view angle: 90°(Diagonal), 80° (Horizontal), 43°(Vertical) |
Lens Mount | M12 |
Day & Night | IR-cut filter with auto-switching |
DNR | 3D DNR |
WDR | Digital WDR |
Compression | |
Video Compression | H.264/H.265 |
Video Bit Rate | Adaptive bit rate. |
Image | |
Max. Resolution | 1920 × 1080 |
Frame Rate | Max:25fps; Self-Adaptive during network transmission |
Network | |
Smart Alarm | Motion detection, Human Detection, Human Tracking, Big Noise Detection, Auto patrol |
Wi-Fi Pairing | AP paring |
Protocol | EZVIZ cloud proprietary protocol |
Interface Protocol | EZVIZ cloud proprietary protocol |
Interface | |
Storage | Micro SD card slot (Max. 512G) |
Power | TYPE-C |
Wired Network | RJ45 X 1 (10M/100M self-adaptive Ethernet port) |
Wi-Fi | |
Standard | IEEE802.11b, 802.11g, 802.11n |
Frequency Range | 2.4 GHz ~ 2.4835 GHz |
Channel Bandwidth | Supports 20MHz |
Security | WPA/WPA2, WPA-PSK/WPA2-PSK |
Transmission Rate | 11b: 11Mbps, 11g :54Mbps, 11n :72Mbps |
Output Power(EIRP) | 19 dBm |
Antenna Gain | 1.9 dBi |
General | |
Operating Conditions | -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing) |
Power Supply | DC 5V/2A |
Power Consumption | 5W max |
IR Range | MAX. 10 meters(32.81ft) |

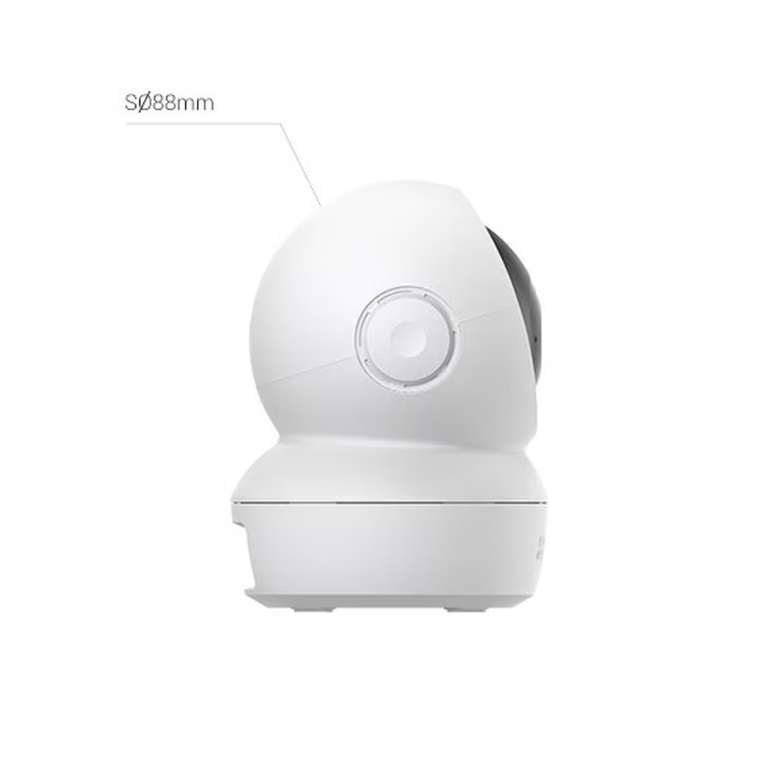

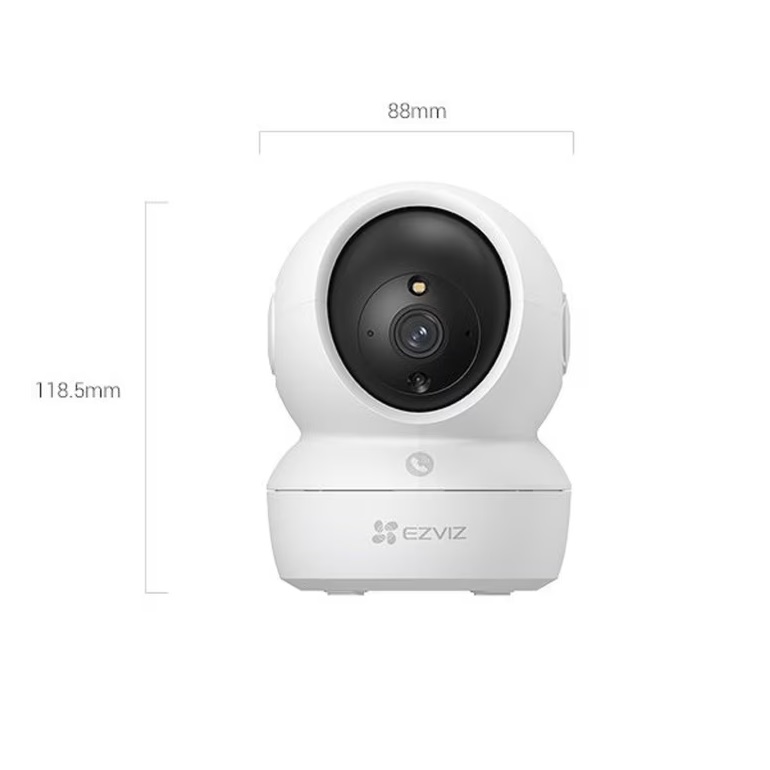

Dimensions | 88mm x 88.2 mm x 119mm (3.46” x 3.47” x 4.69”) |
Packaging Dimensions | 103mm x 103mm x 168mm (4.06” x 4.06” x 6.61”) |
Bare Weight | 218g(0.48lb) |
In the box | |
In the box | – Camera |
– Power Adapter | |
– Power Cable | |
– Drill Template | |
– Mounting Plate | |
– EZVIZ Screw Kit | |
– Regulatory Information | |
– Quick Start Guide | |
Certifications | |
Certifications | CE / UL / WEEE / REACH / RoHS / UKCA |
