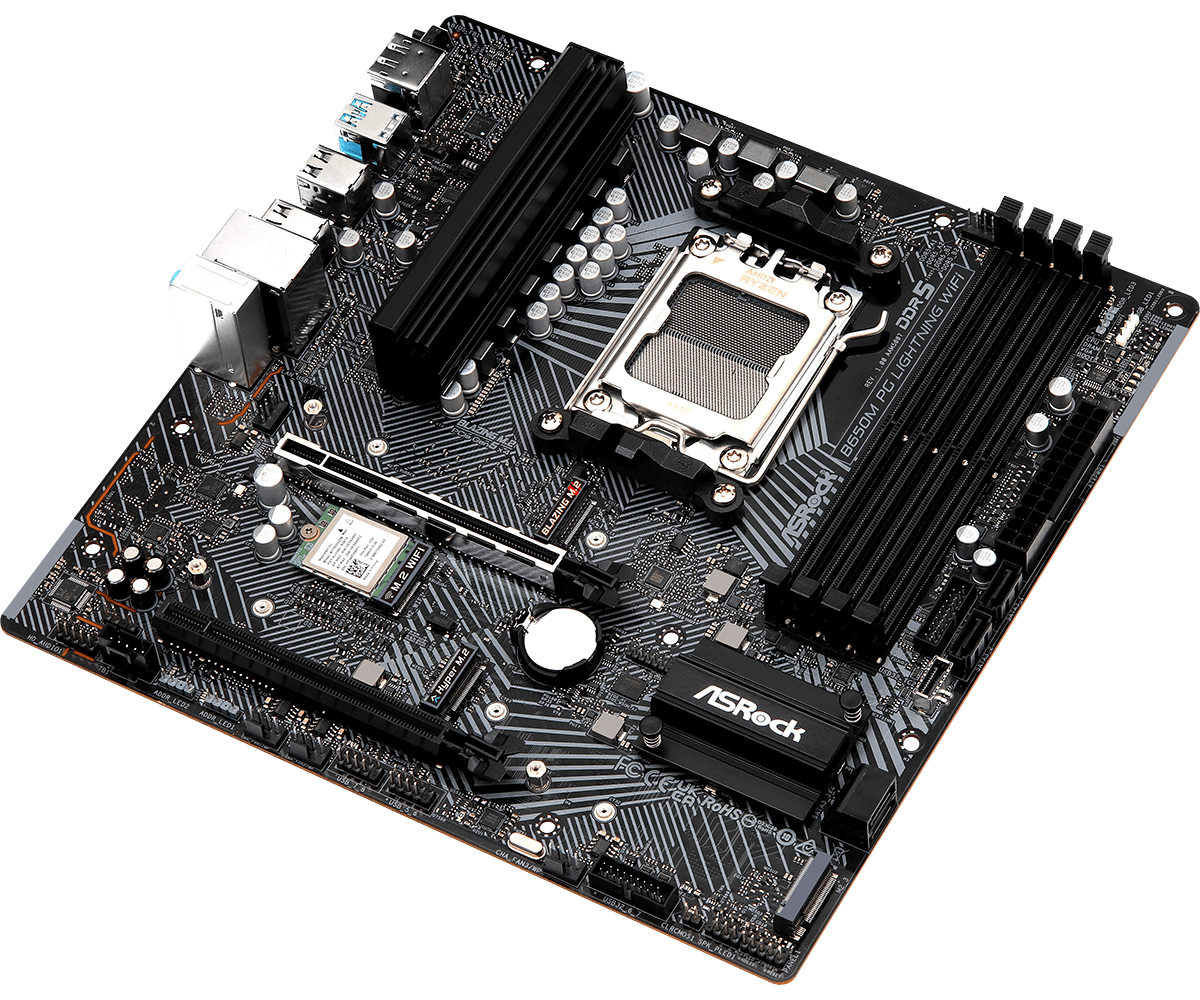

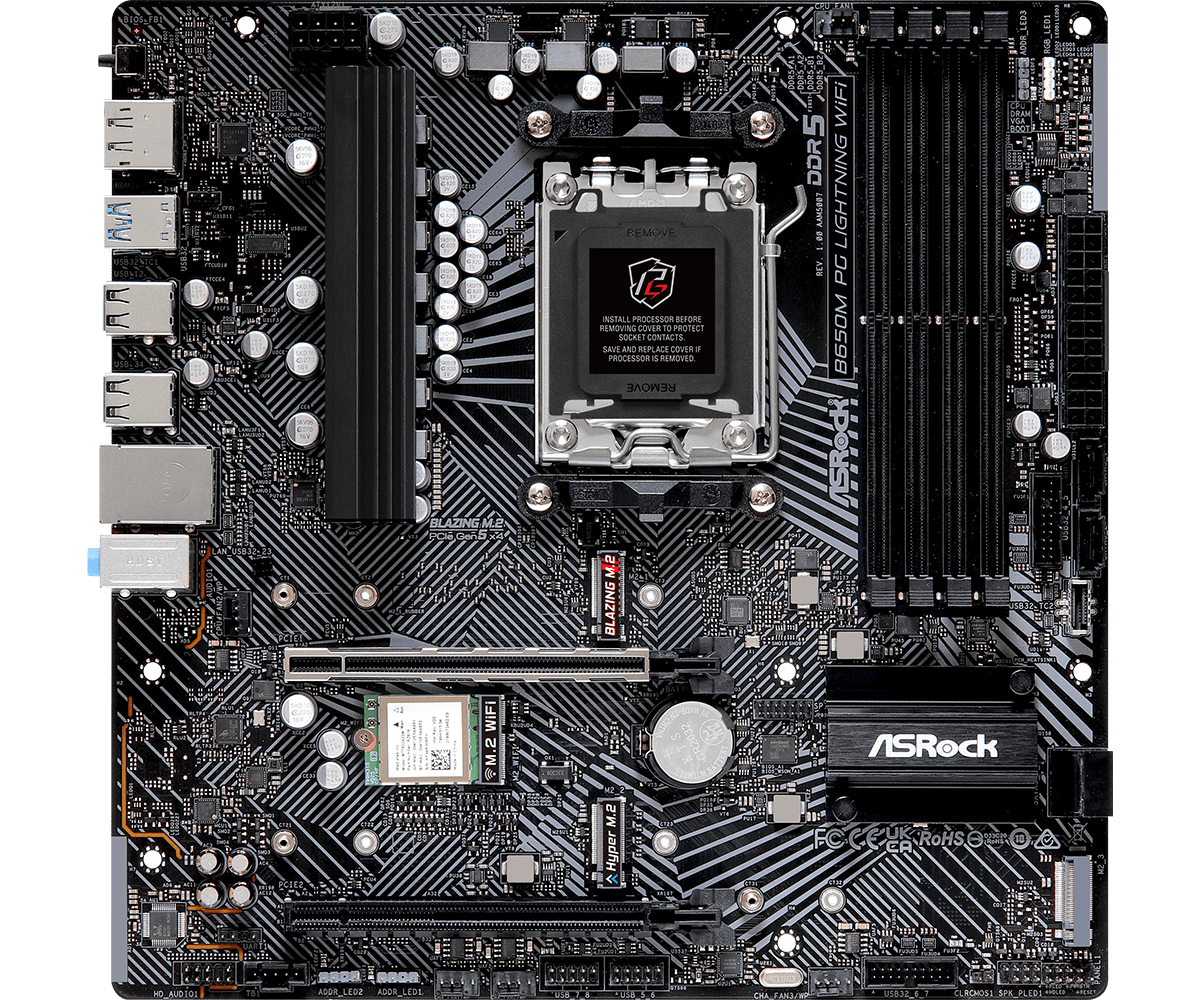

ASRock B650M PG Lightning WiFi mATX主機板(B650M PG LIGHTNING WIFI)

產品特點

• Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• 6+2+1 Power Phase, Dr.MOS
• 4 x DDR5 DIMMs
• Supports Dual Channel, up to 7200+ (OC)
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key-E for WiFi
• Graphics Output: HDMI, DisplayPort
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• 4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4),
• 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen4 x2)
• 1 USB 3.2 Gen2 Type A+C (Rear),
• 1 USB 3.2 Gen1 Type-C (Front),
• 6 USB 3.2 Gen1 Type-A (2 Rear, 4 Front),
• Phantom Gaming 2.5G LAN,
• 802.11ax WiFi 6E + Bluetooth
• Supports ASRock Auto Driver Installer, BIOS Flashback

產品規格

• Unique Feature
• Superb Productivity
• - PCIe Gen5 (M.2)
• - Dual Channel DDR5
• Rock-Solid Durability
• - 6+2+1 Power Phase, 50A Dr.MOS
• Ultrafast Connectivity
• - 2.5G LAN, 802.11ax Wi-Fi 6E
• Module EZ Update
• - BIOS Flashback Button
• - ASRock Auto Driver Installer
• EZ Troubleshooter
• - ASRock Post Status Checker
• CPU
• - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*
• *The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
• Chipset
• - AMD B650
• Memory
• - Dual Channel DDR5 Memory Technology
• - 4 x DDR5 DIMM Slots
• - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
• - Max. capacity of system memory: 256GB
• - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
• *Please refer to Memory Support List for more information.
• BIOS
• - 256Mb AMI UEFI Legal BIOS with GUI support
• Graphics
• Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
• - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
• Audio
• - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• - Nahimic Audio
• LAN
• - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• - Dragon RTL8125BG
• - Supports Phantom Gaming LAN Software
• - Smart Auto Adjust Bandwidth Control
• - Visual User Friendly UI
• - Visual Network Usage Statistics
• - Optimized Default Setting for Game, Browser, and Streaming Modes
• - User Customized Priority Control
• Wireless LAN
• - 802.11ax Wi-Fi 6E Module
• - Supports IEEE 802.11a/b/g/n/ac/ax
• - Supports Dual-Band 2x2 with extended 6GHz band* support
• - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
• - Supports Bluetooth 5.2 + High speed class II
• - Supports MU-MIMO
• *Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
• A 6GHz compatible router is required for 6E functionality.
• Slots
• CPU:
• - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
• - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
• Chipset:
• - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
• - Supports AMD CrossFire™
• - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
• *Supports NVMe SSD as boot disks
• Storage
• CPU:
• - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
• Chipset:
• - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• - 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*
• - 4 x SATA3 6.0 Gb/s Connectors
• * Supports NVMe SSD as boot disks
• RAID
• - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
• * Requires additional M.2 NVMe expansion cards to support RAID 10
• USB
• - 1 x USB 3.2 Gen2 Type-C (Rear)
• - 1 x USB 3.2 Gen2 Type-A (Rear)
• - 1 x USB 3.2 Gen1 Type-C (Front)
• - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
• - 8 x USB 2.0 (4 Rear, 4 Front)
• * All USB ports support ESD Protection
• Connector
• - 1 x SPI TPM Header
• - 1 x Power LED and Speaker Header
• - 1 x RGB LED Header*
• - 3 x Addressable LED Headers**
• - 1 x CPU Fan Connector (4-pin)***
• - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
• - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
• - 1 x 24 pin ATX Power Connector
• - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
• - 1 x Front Panel Audio Connector
• - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
• - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
• - 1 x Front Panel Type C USB 3.2 Gen1 Header
• * Supports in total up to 12V/3A, 36W LED Strip
• ** Support in total up to 5V/3A, 15W LED Strip
• *** CPU_FAN1 supports the fan power up to 1A (12W).
• **** CPU_FAN2/WP supports the fan power up to 2A (24W).
• ***** CHA_FAN1~3/WP support the fan power up to 2A (24W).
• CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

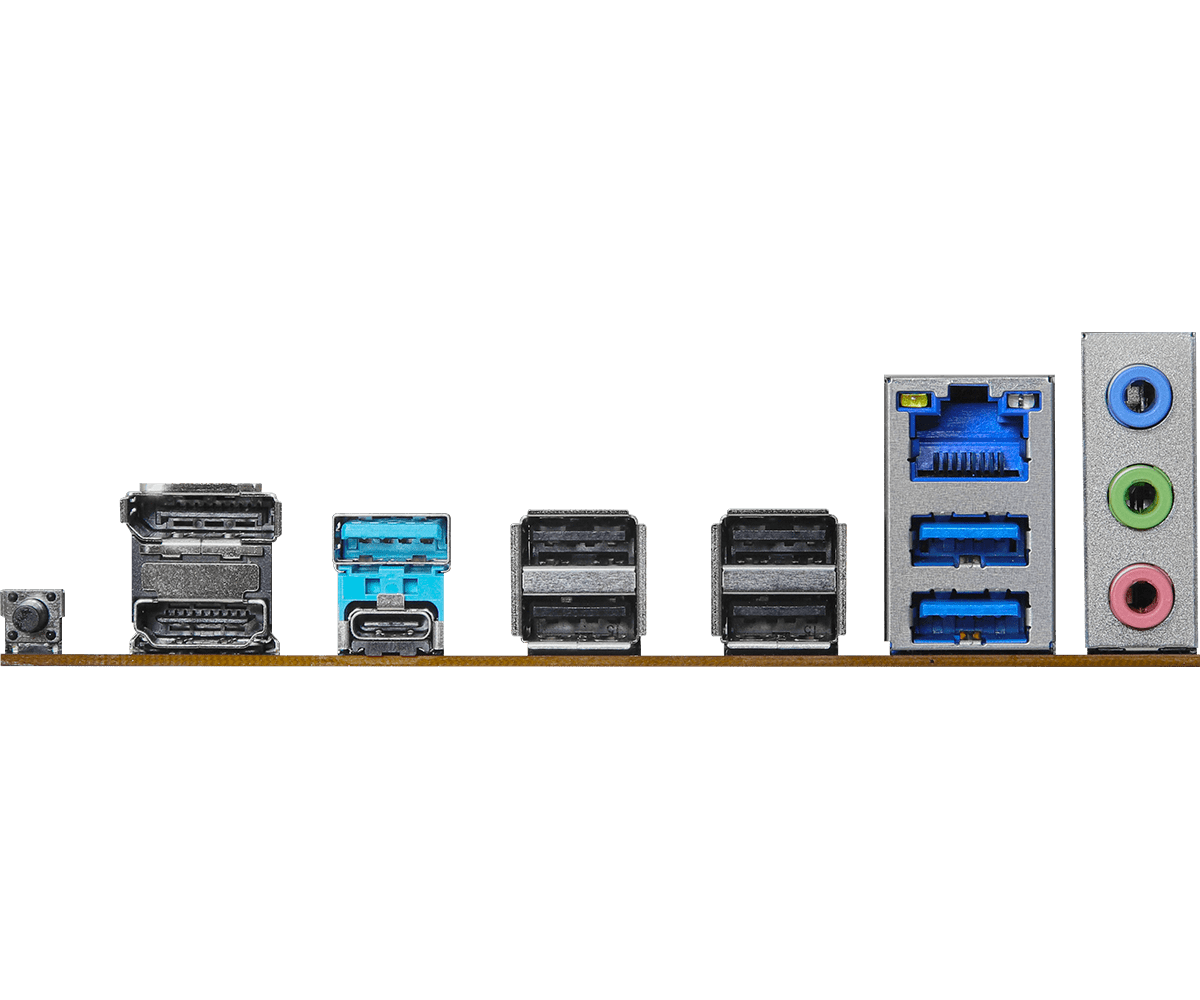

• Rear Panel I/O
• - 2 x Antenna Ports
• - 1 x HDMI Port
• - 1 x DisplayPort 1.4
• - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
• - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
• - 2 x USB 3.2 Gen1 Type-A Ports
• - 4 x USB 2.0 Ports
• - 1 x RJ-45 LAN Port
• - 1 x BIOS Flashback Button
• - HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI
• Software
• - ASRock Motherboard Utility (Phantom Gaming Tuning)
• - ASRock Phantom Gaming LAN Software
• - ASRock Polychrome SYNC*
• UEFI
• - ASRock Full HD UEFI
• - ASRock Auto Driver Installer
• - ASRock Instant Flash
• *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Accessories
• - 1 x User Manual
• - 1 x I/O Shield
• - 2 x SATA Data Cables
• - 2 x SMA WiFi Antenna Cables
• - 2 x ASRock WiFi 2.4/5/6 GHz Antennas
• - 1 x Plastic Cover for Wi-Fi Module
• - 3 x Screws for M.2 Sockets
• Form Factor
• - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
• OS
• - Microsoft Windows® 10 64-bit / 11 64-bit
• Certifications
• - FCC, CE
• - ErP/EuP ready (ErP/EuP ready power supply is required)
