產品特色
- 利用獨立快速釋放的顯示器樞軸，可對每個顯示器進行旋轉、平移和傾斜
- 個性化視角
- 旋轉止塊
- 節省空間
- 造型優美
- 外觀整潔
- 線纜收納功能避免出現線纜雜亂，提供整潔利落的工作空間
- 品質設計
產品介紹
選擇一款靈活的顯示器支臂，滿足您的需求。利用HX Desk Dual Monitor Arm 您可輕鬆調整兩個寬81 cm 的顯示器，同時簡潔的產品設計可進一步增強工作空間舒適度。鉸接式弧形桿可讓您通過輕鬆平移顯示器來分享屏幕，以及獲得最佳視角。利用一個三顯示器弧形桿套件增加顯示屏數量，提高工作效率。
- Includes arm, extension, hinge bow, two monitor pivots, handle, desk clamp, grommet mount, mounting hardware

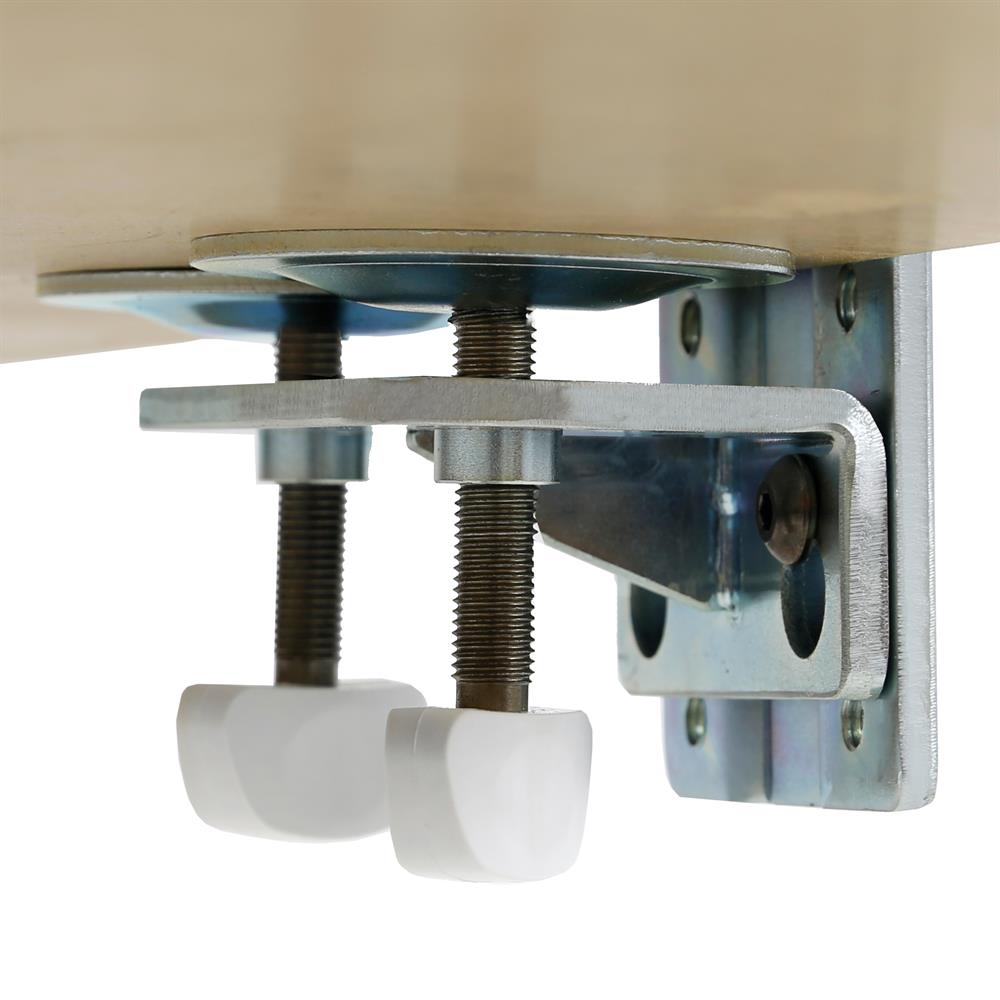

- Desk clamp attaches to surface edge 0.4" to 2.6" (1 to 6.6 cm) thick
- Grommet Mount (included) attaches through surface holes
- Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
- Portrait/landscape rotation with lockout
- Streamline cable management that routes cables under arm and within extension
- Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm). The optional VESA Bracket Adaptor Kit (97-759) allows the attachment of displays with VESA hole patterns of 200 x 100, 200 x 200, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
- * Weight Capacity: Individual LCD weight = 5–17.5 lbs (2.3–7.9 kg) per monitor. Total LCD weight= 10–35 lbs (4.6–15.8 kg)
- Monitor depth greater than 2.5" (6.4 cm) may diminish capacity
- ** Monitor can be rotated 360° at connection point of arm and extension; rotation is restricted to 180° at connection point of extension and base

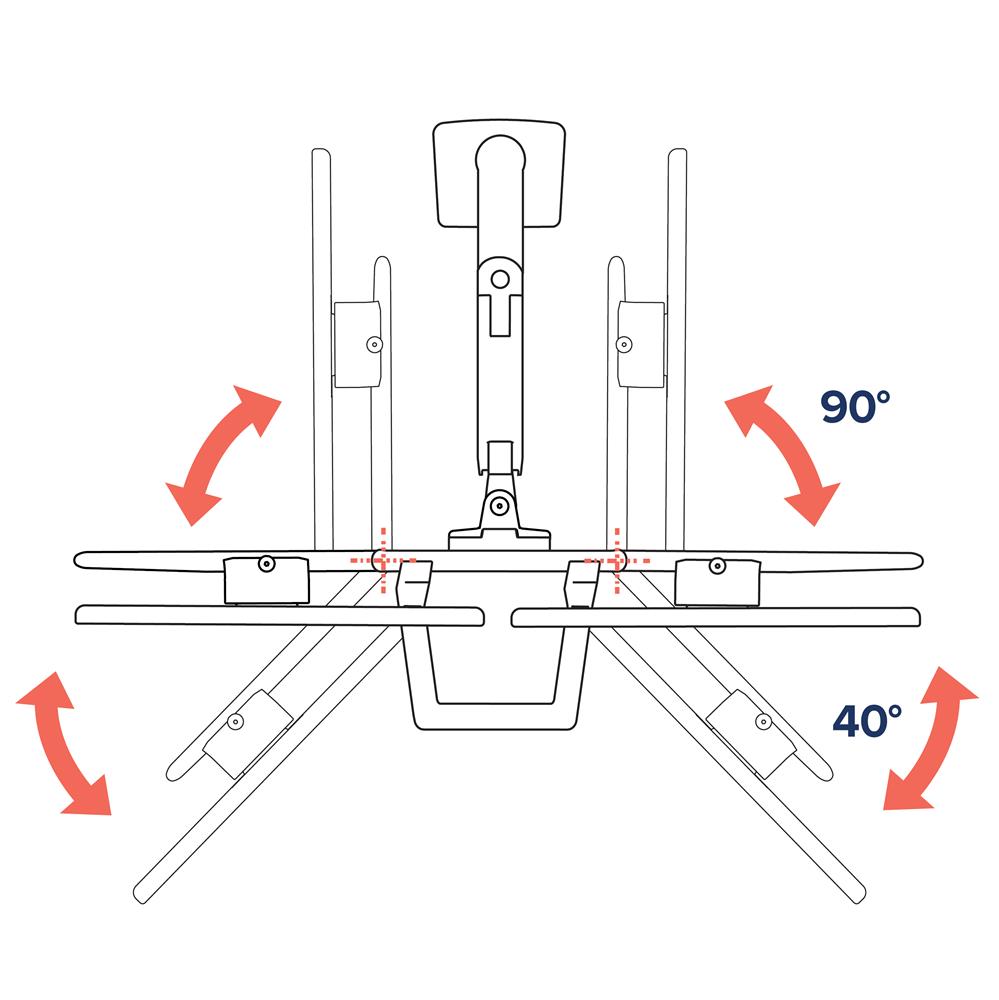

- Hinge bow turns 40° inward and 90° outward

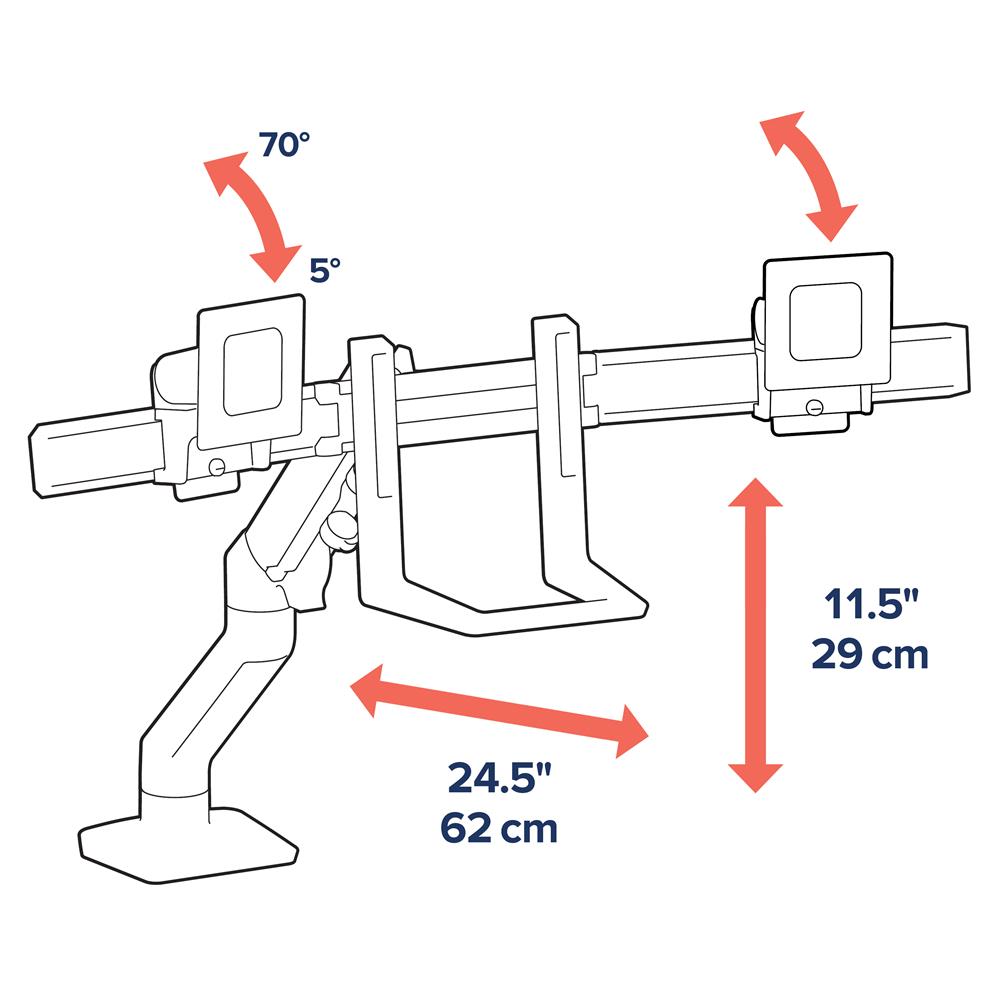

- † Tilt Range: 70° backward, 5° forward
- Pivots feature quick install and release and feature effortless portrait to landscape 6° pan and tilt
- Up to 24.5" (60 cm) extended reach and 11.5" (29.2 cm) vertical height adjustment
- This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
產品規格
|
LCD 尺寸
|
承重能力
|
升降
|
傾斜
|
擺动
|
旋轉
|
VESA
|
保修
|
| ≤ 32 " |
10 – 35 lbs
4.5 – 15.9 kg * |
11.5 "
29.2 cm |
75° † |
180 ° |
360° |
MIS-D |
10年 |
Product Weight: 22.75 lb (10.3 kg)
Shipping Dimensions: 16.0" x 18.8" x 7.5" (48 x 41 x 19 cm)
Shipping Weight: 26.9 lbs (12.2 kg)
Warranty: Ten years
相關網站
產品官網
十年保用
保用/保養條款
香港行貨10年保用
Warranty Period : 10 Years by Ergotron
Service Centre：
Email : [email protected]
銀色 45-476-026
白色 45-476-216
黑色 45-476-224
件
