產品特色
- 使用舒適
- 雙重用途
- 將空間最大化
- 以獲得更多使用空間
- 造型優美
- 通過我們的10,000 次循環運動測試,可使用多年
- 品質設計
產品介紹

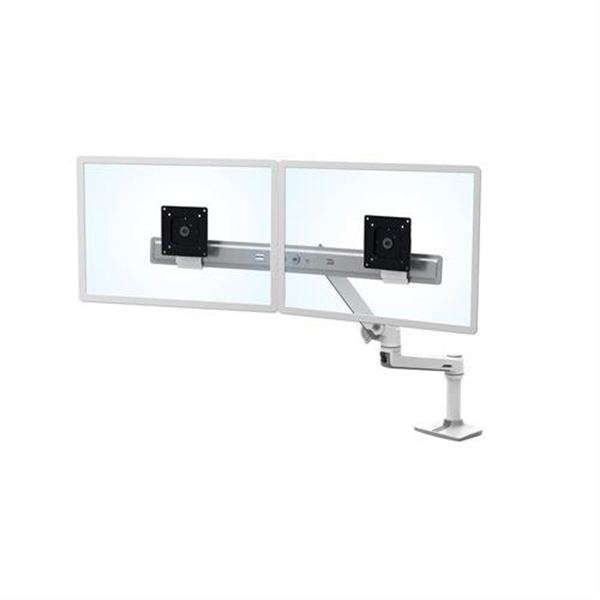

LX Desk Dual Direct Arm 助力您找到最好的視角,節省桌面空間,發現您最高效的狀態。低角度顯示器橫條使用緊湊的活動範圍來保證您的使用空間。項目結束了?在急需暫停使用屏幕時,通過折疊支臂,將其推至一邊,便可創造出一個充滿機會的空間。
- Includes LX Arm, extension, desk clamp, dual bow, two monitor pivots, 8" pole, monitor mounting hardware
- Note: If installed on WorkFit-T or WorkFit-TL, maximum allowable individual monitor weight is reduced to 4.8 lbs (2.2 kg). A separately ordered Grommet Mount (98-017) accessory is required for attachment
- ‡ 13" (33 cm) vertical height adjustment with total monitor weight less than 17 lbs (7.7 kg). If total monitor weight greater than 17 lbs (7.7 kg), the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm)
- † Tilt Range: 13° backward, 17° forward. Each monitor tilts individually
- Arm extends out up to 24.3" (61.7 cm) extended reach
- Mounting Standards: VESA FDMI MIS–D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
- Mounting Options: Desk Clamp attaches to surface edge .4" to 2.4" (10 to 60 mm) thick
- Streamline cable management that routes cables under arm and within extension
- Portrait/landscape rotation with lockout
產品規格
LCD 尺寸
|
承重能力
|
升降
|
傾斜
|
擺动
|
旋轉
|
VESA
|
保修
|
≤ 25 " |
4 – 22 lbs
1.8 – 10.0 kg |
13 "
33.0 cm ‡ |
30 ° † |
360° |
360° |
MIS-D |
10年 |
Product Weight: 11.5 lbs (5.2 kg)
Shipping Dimensions: 32.8" x 13" x 7" (83 x 33 x 18 cm)
Shipping Weight 15.5 lbs (6.6 kg)
Warranty: Ten (10) years
