產品特色
- 增加視覺舒適度：幫助減少眼部、背部和頸部疲勞。
- 新的光滑張貼位設計
- CF™專利移動技術提供了顯示器調節的高級功能，且易於操作。
- 理線功能將電纜佈於緊挨支臂下部的位置，穿過延長臂，絲毫不礙事。
- 滾動消除：可以旋轉屏幕對照片和文本進行縱向瀏覽。
- 基座的止轉裝置將顯示器的旋轉範圍限制在180 度以內，防止顯示器與牆壁接觸。
- 折疊臂可以在狹小區域釋放空間。
- 用HX三屏弧裝置套件升級後的支臂可成為三屏顯示器支臂。
- 通過愛格升內部10000 次循環運動測試，可確保多年內高度調節不出現故障。
產品介紹
HX顯示器支臂為用戶顯示器或電視增加了靈活性，並符合人體工程學要求，是一個完美的附件。HX支臂的特點為新的光滑張貼位設計，能夠騰出更多空間，更好地擺放顯示器，提高工作效率。支臂為光滑和流線型設計，可兼容的較大顯示器重量不超過19 千克。伸展/收縮功能和高度調節功能可提高用戶的舒適度。
- Description: HX Desk Monitor Arm

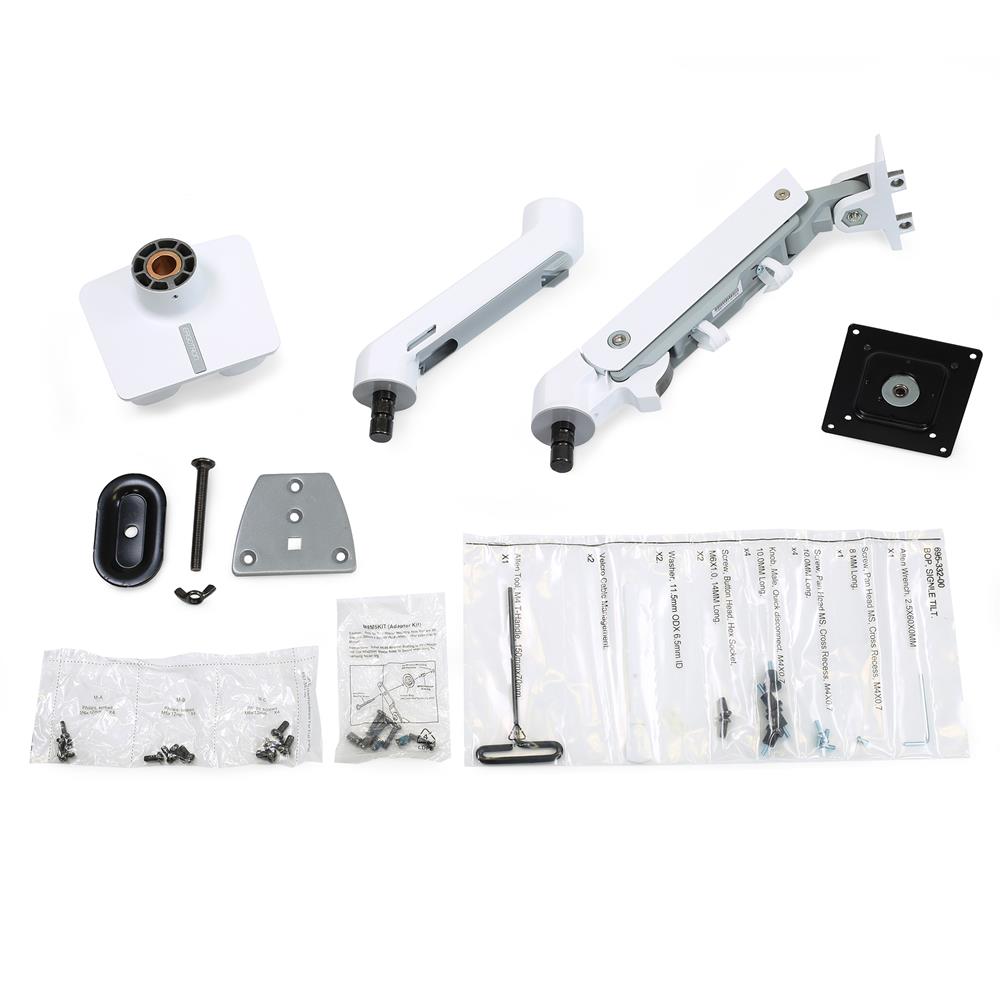

- Includes arm, extension, monitor pivot, desk clamp, grommet mount, mounting hardware
- Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
- Portrait/landscape rotation with lockout
- Streamlined cable management routes cables under arm and within extension

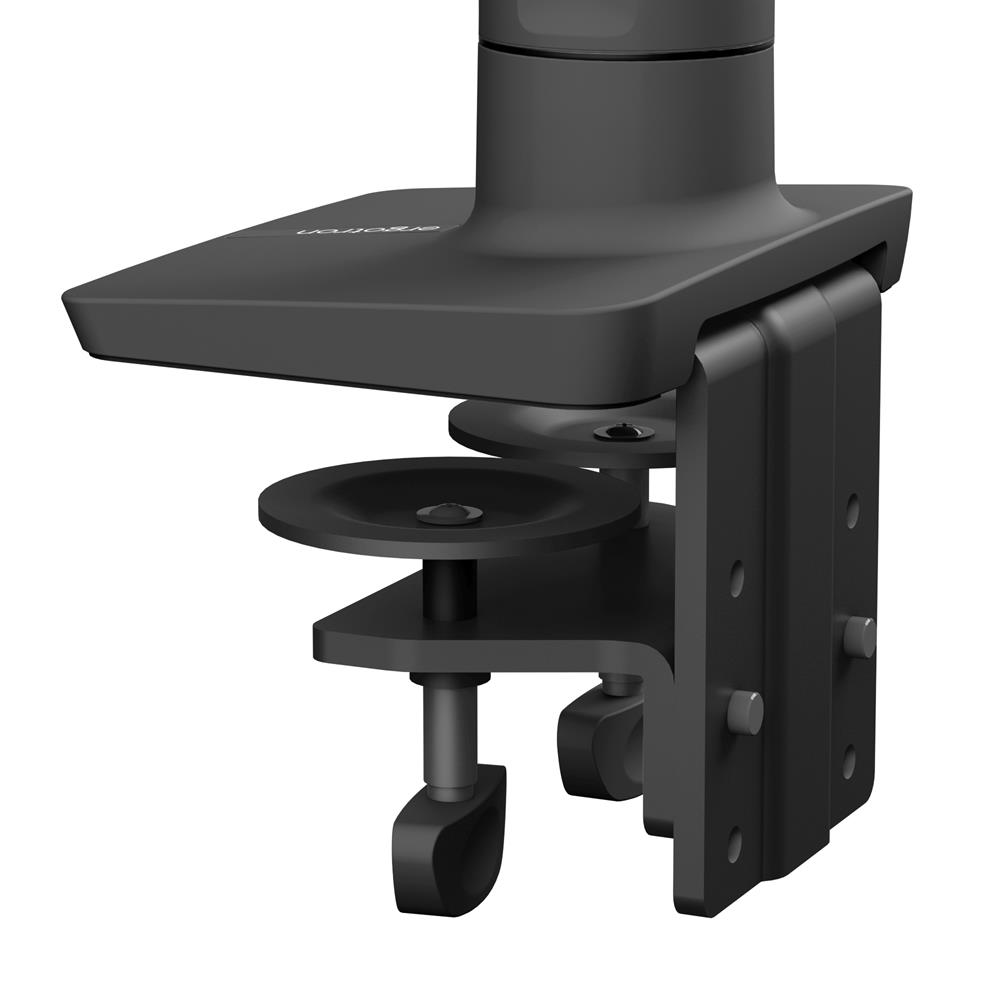

- Desk clamp attaches to surface edge 0.4" to 2.6" (1 to 6.6 cm) thick
- Grommet mount attaches through surface holes

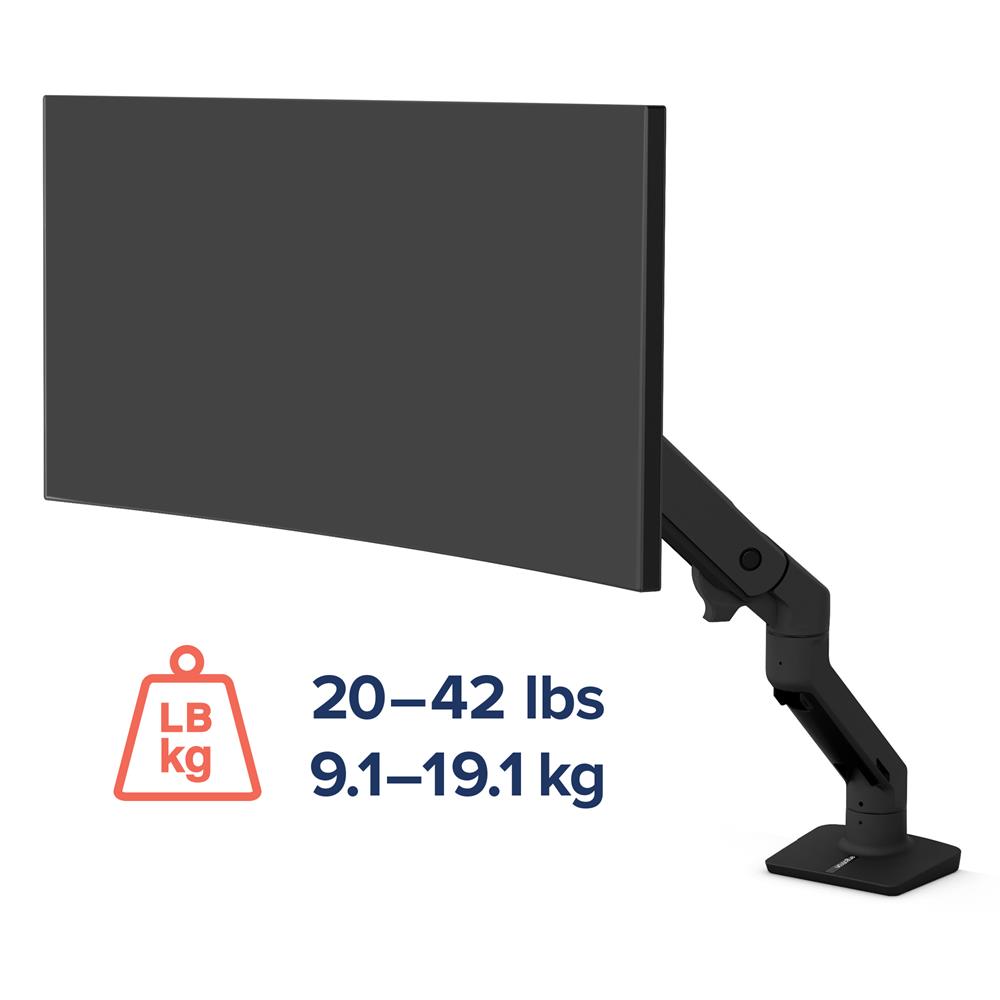

- § Weight Capacity: 20–42 lbs (9.1–19.1 kg). Note: Display depth > 6" (15 cm) may affect the arm's weight capacity. For a curved monitor, consider the arc's depth to determine compatibility. For a display weighing 28–42 lbs (12.7–19.1 kg) with a depth of 6"–12" (15–30 cm), the accessory HX Heavy-Duty Tilt Pivot (98-540-216) is required
- To use an HX arm with the ultra-wide, curved Samsung 49" Odyssey G9 Monitor, also order the accessory HX Heavy-Duty Tilt Pivot (98-540-216)

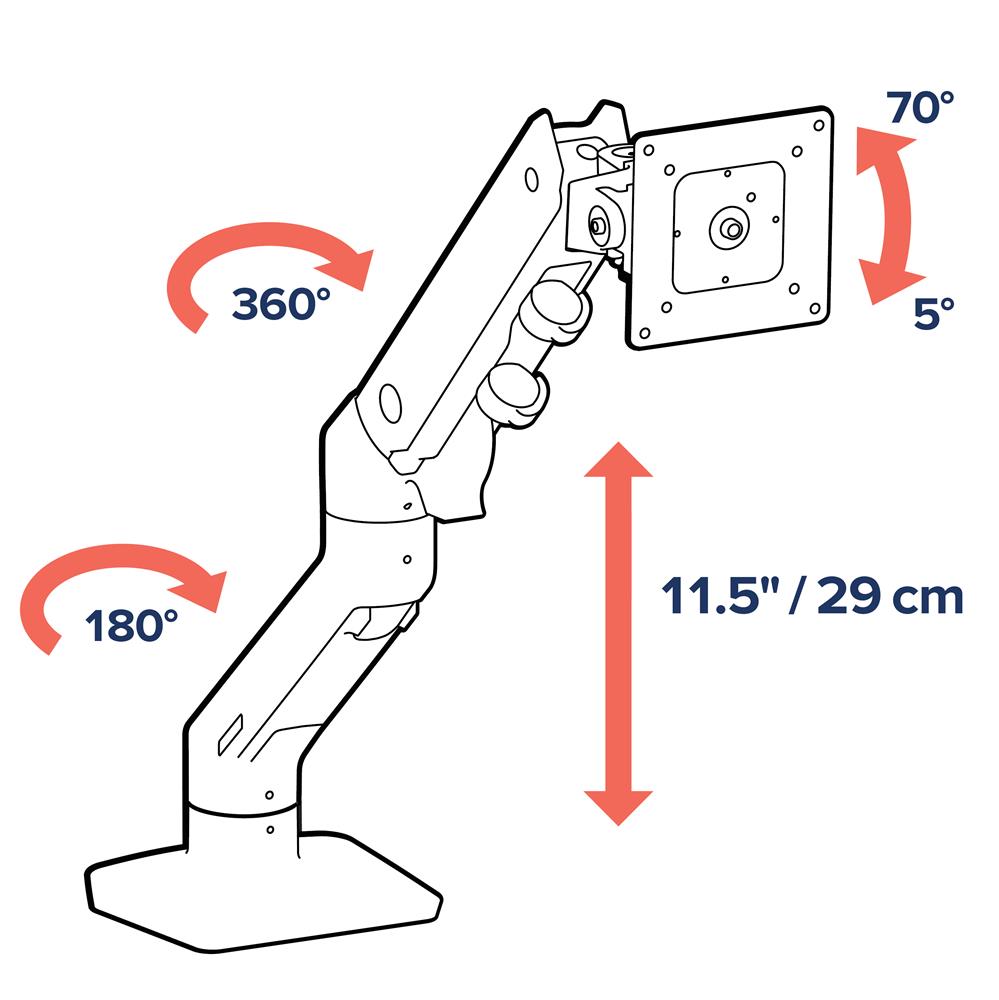

- * Monitor can be rotated 360° at connection point of arm and extension; rotation is restricted to 180° at connection point of extension and base
- ‡ Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
- † Tilt Range: 70° backward, 5° forward
- This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
產品規格
|
LCD 尺寸
|
承重能力
|
升降
|
傾斜
|
擺动
|
旋轉
|
VESA
|
保修
|
| ≤ 49 " |
20 – 42 lbs
9.1 – 19.1 kg |
11.5 "
29.2 cm |
75° † |
360° |
360° |
MIS-D |
10年
|
- Product Weight: 15.25 lbs (6.9 kg)
- Shipping Dimensions: 12" x 19.2" x 7" (30.5 x 48.8 x 17.8 cm)
- Shipping Weight: 18.3 lbs (8.3 kg)
- Warranty: Ten years
相關網站
產品官網
十年保用
保用/保養條款
香港行貨10年保用
Warranty Period : 10 Years by Ergotron
Service Centre：
Email : [email protected]
白色 45-475-216
黑色 45-475-224
銀色 45-475-026
